How do you remove and replace the blower unit on 2002 through 2006 Toyota Avalon?

Disconnect the negative cable from the battery. The blower unit is located in the passenger compartment above the right front footwell. Remove the glove compartment liner, the glove compartment door, and the right lower dash panel. To remove the blower, remove the blower unit retaining screws and lower the unit from the housing. If the motor is being replaced, transfer the fan to the new motor prior to installation. Use pliers to release and remove the clip, then lift the blower fan off the motor shaft. Installation is the reverse of removal. Check for proper operation.

How do you remove the blower unit on 1997 through 2001 Toyota Avalon?

To remove the blower unit, disconnect the negative cable from the battery and find the blower unit in the glove compartment above the right front footwell. Next, remove the glove compartment door and the right lower dash panel to access the blower unit. To remove the Blower Motor, unscrew the blower unit retaining screws and lower the unit from the housing. If you are exchanging the motor, transfer the fan to the new motor before installing it. To install, follow these steps in the reserve order and check the operation of the blower unit.

How to troubleshoot a non-operating blower motor on 1997 through 2001 Toyota Avalon?

To troubleshoot a blower motor, first, check all circuit connections for looseness or corrosion and ensure a fully charged battery. Inspect fuse 2 in the fuse panel below the driver's side of the dashboard and examine the blower relay in the underhood fuse/relay box. If the relay fails the tests, replace it. With the vehicle in Park and the parking brake set, turn the ignition to ON without starting the engine. Locate the blower motor under the glove compartment, set heater controls to FLOOR and blower speed to 4, then listen for operation. Switch the blower speed to 1 and test all speeds. If non-operational, locate the electrical connector at the blower motor and back probe the Blue/red wire terminal. A voltage less than 10 indicates a potential circuit problem. If voltage is present but the blower is non-operational, back probe the Black/white wire and connect it to a good chassis ground. If it operates, check the circuit from the blower to the blower speed switch to the resistor to ground for a bad ground connection. If the blower operates but not at all speeds, inspect and test the blower resistor on the blower housing. If the resistance values are not correct, replace the resistor. If the blower operates but not at all speeds and the resistor is functional, remove the A/C Switch, disconnect the electrical connector from the blower speed switch, continuity test, and replace the switch if necessary.

Genuine Toyota Avalon Blower Motor

A/C Heater Blower Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Blower Motors found

View related parts
Toyota Avalon Motor Sub-Assy, Blower W/Fan
Part Number: 87103-0E040
$133.95 MSRP: $190.44
You Save: $56.49 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower Motor, Fan Assembly, Fan Motor
- Replaces: 87103-48080, 87103-07040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2018 Toyota Avalon | Limited, XL, XLE, XLE Premium, XLE Touring Or Touring, XLS | 4 Cyl 2.5L, 6 Cyl 3.5L | 2ARFXE, 2GRFE; 2ARFXE, 2GRFE; AVX40L-AEXGBA, 2GRFE; GSX30L-AEAGKA, AVX40L-AEXPBA, GSX30L-AEANKA, GSX30L-AEAPKA, GSX30L-AETGKA, GSX30L-AETNKA, GSX30L-AETPKA, GSX40L-AETGKA, GSX40L-AETPKA, GSX40L-AETQKA
View related parts
Toyota Avalon Motor Sub-Assembly, Blow
Part Number: 87103-0E090
$174.92 MSRP: $250.83
You Save: $75.91 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower Motor; Fan Motor
- Replaces: 87103-58080
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2022 Toyota Avalon | Limited, Touring, XLE, XSE | 4 Cyl 2.5L, 6 Cyl 3.5L | 2GRFKS, A25AFKS, A25AFXS; 2GRFKS, A25AFKS, A25AFXS; AXXA55L-AEZGBA, AXXA55L-AEZPBA, AXXH50L-AEXGBA, AXXH50L-AEXPBA, AXXH50L-AEXQBA, AXXH51L-AEXGBA, AXXH51L-AEXPBA, AXXH51L-AEXQBA, GSX50L-AEZGBA, GSX50L-AEZPBA, GSX50L-AEZQBA, GSX50L-AEZSBA
View related parts
Toyota Avalon Motor Sub-Assy, Blower W/Fan
Part Number: 87103-07040
$133.95 MSRP: $190.44
You Save: $56.49 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Replaced by: 87103-0E040
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2009 Toyota Avalon | Limited, XL, XLS | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSX30L-AEAGKA, GSX30L-AEANKA, GSX30L-AEAPKA, GSX30L-AETGKA, GSX30L-AETNKA, GSX30L-AETPKA
View related parts
Toyota Avalon Blower Assy, Heater, Front
Part Number: 87130-07010
$398.80 MSRP: $593.09
You Save: $194.29 (33%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1998 Toyota Avalon | XL, XLS | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX10L-AEPGKA, MCX10L-AEPGKK, MCX10L-AEPNKA, MCX10L-AEPNKK, MCX10L-AESGKA, MCX10L-AESGKK, MCX10L-AESNKA, MCX10L-AESNKK
View related parts
Toyota Avalon Motor Sub-Assy, Heater Blower, W/Fan
Part Number: 87103-07011
$176.78 MSRP: $253.49
You Save: $76.71 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaces: 87103-07010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX10L-AEPGKA, MCX10L-AEPGKK, MCX10L-AEPNKA, MCX10L-AEPNKK, MCX10L-AESGKA, MCX10L-AESGKK, MCX10L-AESNKA, MCX10L-AESNKK
View related parts

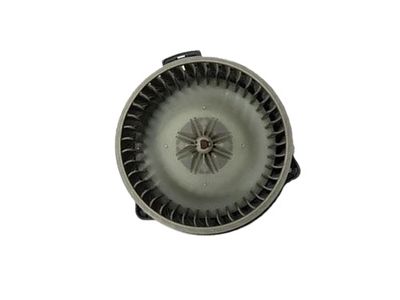

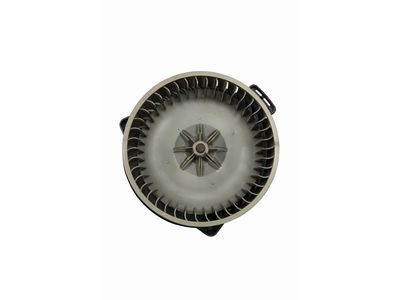

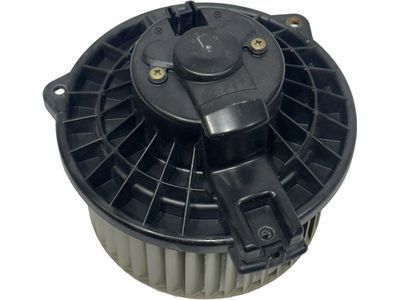

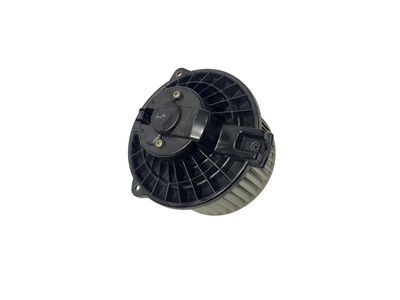

Toyota Avalon Motor Sub-Assy, Cooling Unit, W/Fan
Part Number: 87103-07030
$177.84 MSRP: $255.01
You Save: $77.17 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Blower Motor, Fan Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2003 Toyota Avalon | XL | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX20L-AEPNKA, MCX20L-AEPNKK, MCX20L-AESNKA
View related parts
Toyota Avalon Motor Sub-Assy, Heater Blower, W/Fan
Part Number: 87103-07010
$176.78 MSRP: $253.49
You Save: $76.71 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 87103-07011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1999 Toyota Avalon | XL, XLS | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX10L-AEPGKA, MCX10L-AEPGKK, MCX10L-AEPNKA, MCX10L-AEPNKK, MCX10L-AESGKA, MCX10L-AESGKK, MCX10L-AESNKA, MCX10L-AESNKK
View related parts
Toyota Avalon Motor Sub-Assy, Cooling Unit, W/Fan
Part Number: 87103-07020
$175.75 MSRP: $252.01
You Save: $76.26 (31%)
Product Specifications
- Other Name: Blower Motor, Fan Assembly
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Avalon | XL, XLS | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX20L-AEPGKA, MCX20L-AEPGKK, MCX20L-AEPNKA, MCX20L-AEPNKK, MCX20L-AESGKA, MCX20L-AESNKA
View related parts
Toyota Avalon Blower Assy, Heater, Front
Part Number: 87130-07011
Product Specifications
- Other Name: Blower Assembly
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-1999 Toyota Avalon | XL | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX10L-AEPNKA, MCX10L-AEPNKK, MCX10L-AESNKA, MCX10L-AESNKK
View related parts
Toyota Avalon Blower Assy, Heater, Front
Part Number: 87130-07020
Product Specifications
- Other Name: Blower Assembly
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-1999 Toyota Avalon | XLS | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCX10L-AEPGKA, MCX10L-AEPGKK, MCX10L-AESGKA, MCX10L-AESGKK

Toyota Avalon Blower Motor

The Blower Motor is a vital component of the Toyota Avalon's Heating, Ventilation, and Air Conditioning system; it is charged with the duty to regulate the air induction into the car cabin. Power supply of the blower motor control is also controlling of the temperature inside the car in case of a cold morning or hot sunny day. Usually, the blower motor controls are wired to the blower motor control module, and the position of the blower motor controls is convenient and grouped. But problems with the electronic module or the wiring can produce some other failures and the heating and A/C systems' control is lost. Some of the signs you may notice when your have a faulty blower motor are the absence of response from the controls or missing switches, which requires one to order for the blower motor replacements.

If you are in demand for superior quality and affordable OEM Toyota Avalon Blower Motor, then shop with us! We own a wide range of the reduced-priced genuine Toyota Avalon Blower Motor. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Avalon Blower Motor Parts Questions & Experts Answers

Motor Sub-Assy, Cooling Unit, W/Fan
87103-07020
Q: How do you remove and replace the blower unit on 2002 through 2006 Toyota Avalon?
A: Disconnect the negative cable from the battery. The blower unit is located in the passenger compartment above the right front footwell. Remove the glove compartment liner, the glove compartment door, and the right lower dash panel. To remove the blower, remove the blower unit retaining screws and lower the unit from the housing. If the motor is being replaced, transfer the fan to the new motor prior to installation. Use pliers to release and remove the clip, then lift the blower fan off the motor shaft. Installation is the reverse of removal. Check for proper operation.
Motor Sub-Assy, Cooling Unit, W/Fan
87103-07020
Q: How do you remove the blower unit on 1997 through 2001 Toyota Avalon?
A: To remove the blower unit, disconnect the negative cable from the battery and find the blower unit in the glove compartment above the right front footwell. Next, remove the glove compartment door and the right lower dash panel to access the blower unit. To remove the Blower Motor, unscrew the blower unit retaining screws and lower the unit from the housing. If you are exchanging the motor, transfer the fan to the new motor before installing it. To install, follow these steps in the reserve order and check the operation of the blower unit.
Motor Sub-Assy, Cooling Unit, W/Fan
87103-07020
Q: How to troubleshoot a non-operating blower motor on 1997 through 2001 Toyota Avalon?
A: To troubleshoot a blower motor, first, check all circuit connections for looseness or corrosion and ensure a fully charged battery. Inspect fuse 2 in the fuse panel below the driver's side of the dashboard and examine the blower relay in the underhood fuse/relay box. If the relay fails the tests, replace it. With the vehicle in Park and the parking brake set, turn the ignition to ON without starting the engine. Locate the blower motor under the glove compartment, set heater controls to FLOOR and blower speed to 4, then listen for operation. Switch the blower speed to 1 and test all speeds. If non-operational, locate the electrical connector at the blower motor and back probe the Blue/red wire terminal. A voltage less than 10 indicates a potential circuit problem. If voltage is present but the blower is non-operational, back probe the Black/white wire and connect it to a good chassis ground. If it operates, check the circuit from the blower to the blower speed switch to the resistor to ground for a bad ground connection. If the blower operates but not at all speeds, inspect and test the blower resistor on the blower housing. If the resistance values are not correct, replace the resistor. If the blower operates but not at all speeds and the resistor is functional, remove the A/C Switch, disconnect the electrical connector from the blower speed switch, continuity test, and replace the switch if necessary.
