How to remove and replace the air filter in a Toyota Matrix?

The air filter is located inside a housing at the left(driver's) side of the engine compartment. To remove the air filter, release the spring clips that keep the two halves of the air cleaner housing together, then lift the cover-up and remove the air filter element. Be careful not to stretch the wiring attached to the MAF sensor when moving the air filter box. Inspect the outer surface of the filter element. If it is dirty, replace it. If it is only moderately dusty, it can be reused by blowing it clean from the back to the front surface with compressed air. Because it is a pleated paper type filter, it cannot be washed or oiled. If it cannot be cleaned satisfactorily with compressed air, discard and replace it. While the cover is off, be careful not to drop anything down into the housing. Never drive the vehicle with the air cleaner removed. Excessive engine wear could result and backfiring could even cause a fire under the hood. Wipe out the inside of the air cleaner housing. Place the new filter into the air cleaner housing, making sure it seats properly. Installation of the cover is the reverse of removal.

Genuine Toyota Matrix Air Filter

Air Cleaner

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Air Filters found

View related parts
Toyota Matrix Engine Air Cleaner Filter Element Sub-Assembly
Part Number: 17801-0T030
$20.22 MSRP: $30.99
You Save: $10.77 (35%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Element Sub-Assy, Air Cleaner Filter; Air Filter, Filter Element
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2014 Toyota Matrix | 4 Cyl 1.8L | 2ZRFE; 2ZRFE; ZRE142L-DHMDKA, ZRE142L-DHMDKK, ZRE142L-DHPDKA, ZRE142L-DHPDKK
View related parts
Toyota Matrix Air Cleaner Filter Element Sub-Assembly
Part Number: 17801-AD010
$15.46 MSRP: $20.99
You Save: $5.53 (27%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Element Sub-Assy, Air Cleaner Filter; Air Filter
- Manufacturer Note: (L)
- Replaced by: 17801-YZZ06
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2014 Toyota Matrix | 4 Cyl 2.4L | 2AZFE; 2AZFE; AZE141L-DHANKA, AZE141L-DHANKK, AZE141L-DHMNKA, AZE141L-DHMNKK, AZE144L-DHPNKA, AZE144L-DHPNKK, AZE146L-DHASKA, AZE146L-DHASKK, AZE146L-DHMSKA, AZE146L-DHMSKK
View related parts

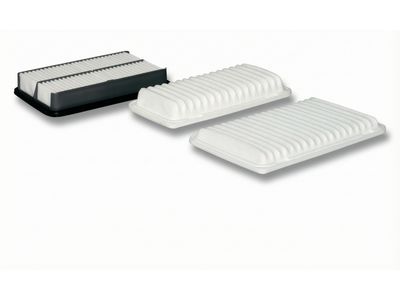

Toyota Matrix Air Cleaner Filter Element Sub-Assembly
Part Number: 17801-0D020
$15.46 MSRP: $20.99
You Save: $5.53 (27%)
ADD TO CART
Product Specifications
- Other Name: Element Sub-Assy, Air Cleaner Filter; Air Filter, Element, Filter Element
- Manufacturer Note: (L)
- Replaced by: 17801-YZZ03
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L | 1ZZFE, 2ZZGE; 1ZZFE, 2ZZGE; ZZE130L-DEMDKA, ZZE130L-DEMDKK, ZZE130L-DEMNKA, ZZE130L-DEMNKK, ZZE130L-DEMSKA, ZZE130L-DEMSKK, ZZE130L-DEPDKA, ZZE130L-DEPDKK, ZZE130L-DEPNKA, ZZE130L-DEPNKK, ZZE130L-DEPSKA, ZZE130L-DEPSKK, ZZE131L-DEFSFA, ZZE131L-DEFSFK, ZZE132L-DHMDKA, ZZE132L-DHMDKK, ZZE132L-DHMNKA, ZZE132L-DHMNKK, ZZE132L-DHPDKA, ZZE132L-DHPDKK, ZZE132L-DHPNKA, ZZE132L-DHPNKK, ZZE133L-DHFSFA, ZZE133L-DHFSFK, ZZE133L-DHPSFA, ZZE133L-DHPSFK, ZZE134L-DHPDKA, ZZE134L-DHPDKK, ZZE134L-DHPNKA, ZZE134L-DHPNKK
View related parts

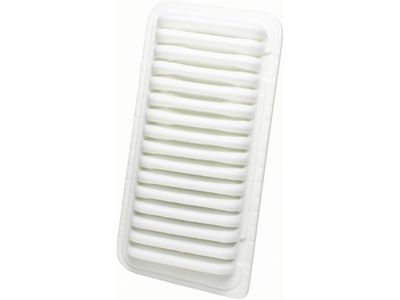

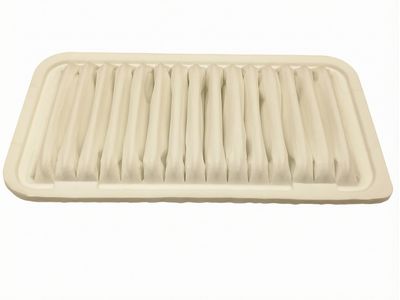

Toyota Matrix Air Cleaner Filter Element Sub-Assembly
Part Number: 17801-22020
$15.46 MSRP: $20.99
You Save: $5.53 (27%)
ADD TO CART
Product Specifications
- Other Name: Element Sub-Assy, Air Cleaner Filter
- Manufacturer Note: (J)
- Replaced by: 17801-YZZ03
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | CE, LE, S, STD, XR, XRS | 4 Cyl 1.8L | 1ZZFE, 2ZZGE; 1ZZFE, 2ZZGE; ZZE130L-DEMDKA, ZZE130L-DEMDKK, ZZE130L-DEMNKA, ZZE130L-DEMNKK, ZZE130L-DEMSKA, ZZE130L-DEMSKK, ZZE130L-DEPDKA, ZZE130L-DEPDKK, ZZE130L-DEPNKA, ZZE130L-DEPNKK, ZZE130L-DEPSKA, ZZE130L-DEPSKK, ZZE131L-DEFSFA, ZZE131L-DEFSFK, ZZE132L-DHMDKA, ZZE132L-DHMDKK, ZZE132L-DHMNKA, ZZE132L-DHMNKK, ZZE132L-DHPDKA, ZZE132L-DHPDKK, ZZE132L-DHPNKA, ZZE132L-DHPNKK, ZZE133L-DHFSFA, ZZE133L-DHFSFK, ZZE133L-DHPSFA, ZZE133L-DHPSFK, ZZE134L-DHPDKA, ZZE134L-DHPDKK, ZZE134L-DHPNKA, ZZE134L-DHPNKK

Toyota Matrix Air Filter

Air Filter in Toyota Matrix is the component that ensures no dirty materials get to the engine hence it is very vital. Since the engine requires a lot of air and passes it through the combustion chamber, the air filter shall deliver the optimal quality to enhance performance and fuel economy. Normally it's a paper type which filters particles as small as 5 microns, protects the engine and does not limit the airflow. Various designs of air filters are offered on the market; round ones specially designed for carbureted engines and flat panel ones for fuel injected vehicles. Performance air filters are made from such materials as cotton gauze and synthetic materials that bring higher airflow rate and service life than OE filters improving the power and fuel economy of an engine. Replacement of the air filter of the Toyota Matrix vehicles should be done on a regular basis so as to ensure that the necessary engine protection as well as performance is determined.

If you are in demand for superior quality and affordable OEM Toyota Matrix Air Filter, then shop with us! We own a wide range of the reduced-priced genuine Toyota Matrix Air Filter. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Matrix Air Filter Parts Questions & Experts Answers

Air Cleaner Filter Element Sub-Assembly
17801-0D020
Q: How to remove and replace the air filter in a Toyota Matrix?
A: The air filter is located inside a housing at the left(driver's) side of the engine compartment. To remove the air filter, release the spring clips that keep the two halves of the air cleaner housing together, then lift the cover-up and remove the air filter element. Be careful not to stretch the wiring attached to the MAF sensor when moving the air filter box. Inspect the outer surface of the filter element. If it is dirty, replace it. If it is only moderately dusty, it can be reused by blowing it clean from the back to the front surface with compressed air. Because it is a pleated paper type filter, it cannot be washed or oiled. If it cannot be cleaned satisfactorily with compressed air, discard and replace it. While the cover is off, be careful not to drop anything down into the housing. Never drive the vehicle with the air cleaner removed. Excessive engine wear could result and backfiring could even cause a fire under the hood. Wipe out the inside of the air cleaner housing. Place the new filter into the air cleaner housing, making sure it seats properly. Installation of the cover is the reverse of removal.
