Genuine Toyota Matrix Fuel Pump
Gas Pump- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
11 Fuel Pumps found
Toyota Matrix Fuel Suction Tube Assembly W/Pump & Gage
Part Number: 77020-02291$550.98 MSRP: $811.02You Save: $260.04 (33%)
Toyota Matrix Fuel Suction Tube Assembly W/Pump & Gage
Part Number: 77020-02180$600.92 MSRP: $884.56You Save: $283.64 (33%)Ships in 1-3 Business Days
Toyota Matrix Fuel Pump
Part Number: 23220-0H130$342.27 MSRP: $503.82You Save: $161.55 (33%)Ships in 1-3 Business Days
Toyota Matrix Fuel Pump Assembly
Part Number: 23220-0H131$342.27 MSRP: $503.82You Save: $161.55 (33%)Ships in 1-3 Business Days
Toyota Matrix Fuel Suction Tube Assembly W/Pump & Gage
Part Number: 77020-02181$600.92 MSRP: $884.56You Save: $283.64 (33%)Ships in 1-3 Business Days

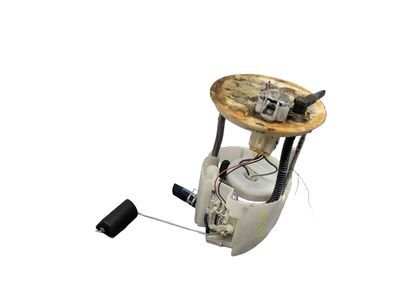

Toyota Matrix Fuel Suction Tube Assembly W/Pump & Gage
Part Number: 77020-02270$549.06 MSRP: $808.19You Save: $259.13 (33%)Ships in 1-3 Business Days
Toyota Matrix Fuel Pump
Part Number: 23220-0H140$311.91 MSRP: $447.25You Save: $135.34 (31%)Ships in 1-3 Business DaysToyota Matrix Fuel Pump Assembly
Part Number: 23220-0H141$311.91 MSRP: $447.25You Save: $135.34 (31%)Ships in 1-3 Business Days
Toyota Matrix Fuel Pump
It serves the function of pumping fuel from the tank to the carburetor or to the fuel injecting assembly in Toyota Matrix cars. Electric pumps are most often installed in fuel injection systems while mechanical pumps are relative to the carburetor engines. The main task of the pump is to draw and provide the fuel under high pressure with the proper flow to burn in the engines. There can be either of two types of Fuel Pumps used in Toyota Matrix vehicles; internal fuel pumps integrated within the tank or external mechanical fuel pumps on the outside of the tank. Electric pumps have features of giving high-pressure outputs and are controlled by electronic control units for fuel delivery and safety. Performance fuel pumps are flow rated in Gallons Per Hour (GPH) or Liters Per Hour (LPH) to guarantee that the engine gets the required amount of fuel and pressure.
If you are in demand for superior quality and affordable OEM Toyota Matrix Fuel Pump, then shop with us! We own a wide range of the reduced-priced genuine Toyota Matrix Fuel Pump. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.
Toyota Matrix Fuel Pump Parts Questions & Experts Answers
- Q: How to disassemble and replace the fuel pump/sending unit in a Toyota Matrix?A: Check on the availability of parts before disassembling the unit. Relieve the fuel system pressure. Disconnect the cable from the negative terminal of the battery. Remove the fuel tank cap. Remove the rear seat from inside the passenger compartment. Remove the fuel pump/sending unit access cover. Unplug the electrical connectors, then disconnect the fuel lines. On 2003 and 2004 models, remove the fuel pump/sending unit retaining screws and remove the mounting flange. In 2005 and later models, the fuel pump assembly is retained in the tank by a large screw-on ring. A special tool is available which makes loosening and tightening this ring very easy, but a large pair of water pump pliers will work. Carefully withdraw the fuel pump/fuel level sending unit assembly from the fuel tank. The components of the fuel pump assembly are modular and all attach to the main housing. Remove the plastic support on the bottom of the pump by releasing the clips with a screwdriver, the pull off the rubber isolator, the fuel sock filter clip, then the electrical connector. Withdraw the pump from the housing. Inspect the strainer for contamination. If it is dirty, replace it. Reassemble the fuel pump/sending unit in the reverse order of disassembly. Install the fuel pump/sending unit assembly in the fuel tank. When installing the fuel pump assembly locking ring 2005 and later models, the raised rib on the ring should align between the two triangle marks on the tank, and the four prongs should be in their notches. Connect the fuel line and electrical connectors. The remainder of installation is the reverse of removal.
- Q: How to check the fuel system and fuel pump in a Toyota Matrix?A: To check fuel pressure, remove the fuel line after relieving system pressure, turn on the ignition, and check the gauge. If pressure isn't within specifications, check the Fuel Pressure Regulator or other causes. You can inspect the EFI fuse and wiring to the pump.
