How do you remove and install the door latch, lock cylinder, and handles on Toyota Sequoia?

On models equipped with power windows and door locks, disconnect the cable from the negative battery terminal. Remove the door trim panel and the plastic watershield. Working through the large access hole, disengage the rod to the outside handle and the lock cylinder by rotating the retaining clip up and disconnecting the rod from the outside handle. The door lock rod is attached by plastic clips, which can be removed by unsnapping the portion engaging the connecting rod and pulling the rod out of its locating hole. Remove the screws securing the latch to the door, then pull the latch back enough to disconnect the electrical connector at the latch. Remove the latch assembly through the door opening with the two cables from the inside door handle still attached to the latch. Installation is the reverse of removal. To remove the outside handle and lock cylinder assembly, raise the window before removing the door trim panel and watershield. Remove an access plug at the rear of the door. Working through the access hole, loosen the TORX screw and remove the lock cylinder cover and the door lock key cylinder as a unit. Once the lock cylinder is out, disengage the lock cover clips using a screwdriver and separate the cover from the lock cylinder. Installation is the reverse of removal. Once the lock cylinder has been removed, slide the exterior handle reward and out to remove. Working from the outside of the door, remove the handle assembly exterior mounting screw. From inside of the door, disconnect the electrical connector, remove the mounting screw, disconnect the lock rod clip, and move the lock rod away from the handle. If the door latch was removed, leave the lock rod attached to the door handle assembly. Installation is the reverse of removal. Remove the door trim panel, disengage the handle-to-latch cables, and remove the cables from the handle. Remove the handle retaining screws and disengage the handle from the door trim panel. Installation is the reverse of removal.

Genuine Toyota Sequoia Door Latch Assembly

Door Latch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Door Latch Assemblys found

View related parts
Toyota Sequoia Rear Door Lock Assembly W/Motor, Left
Part Number: 69060-0C060
$229.53 MSRP: $329.13
You Save: $99.60 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Lock Assembly, Rear Door W/Motor, Lh; Lock Actuator, Lock Assembly
- Position: Driver Side
- Replaces: 69060-0C030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFBE, 3URFE; 1URFE, 2UZFE, 3URFBE, 3URFE; UCK60L-GKALKA, 3URFE; UPK60L-GKTLKA, UCK60L-GKASKA, UCK65L-GKALKA, UCK65L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
View related parts
Toyota Sequoia Rear Door Lock Assembly W/Motor, Right
Part Number: 69050-0C060
$229.53 MSRP: $329.13
You Save: $99.60 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Lock Assembly, Rear Door W/Motor, Rh; Lock Actuator, Lock Assembly
- Position: Passenger Side
- Replaces: 69050-0C030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFBE, 3URFE; 1URFE, 2UZFE, 3URFBE, 3URFE; UCK60L-GKALKA, 3URFE; UPK60L-GKTLKA, UCK60L-GKASKA, UCK65L-GKALKA, UCK65L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
View related parts
Toyota Sequoia Back Door Lock Assembly
Part Number: 69301-0C010
$102.26 MSRP: $144.15
You Save: $41.89 (30%)
ADD TO CART
Product Specifications
- Other Name: Lock Assy, Back Door; Lock
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK35L-GKBLKA, UCK35L-GKBSKA, UCK35L-GKSLKA, UCK35L-GKSSKA, UCK45L-GKBLKA, UCK45L-GKBSKA, UCK45L-GKSLKA, UCK45L-GKSSKA
View related parts
Toyota Sequoia Rear Door Lock Assembly W/Motor, Right
Part Number: 69050-0C030
$229.53 MSRP: $329.13
You Save: $99.60 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Lock Assy, Rear Door W/Motor, Rh
- Position: Passenger Side
- Replaced by: 69050-0C060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2012 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFBE, 3URFE; 1URFE, 2UZFE, 3URFBE, 3URFE; UCK60L-GKALKA, UCK60L-GKASKA, UCK65L-GKALKA, UCK65L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
View related parts
Toyota Sequoia Rear Door Lock Assembly W/Motor, Left
Part Number: 69060-0C030
$229.53 MSRP: $329.13
You Save: $99.60 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Lock Assy, Rear Door W/Motor, Lh
- Position: Driver Side
- Replaced by: 69060-0C060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2012 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFBE, 3URFE; 1URFE, 2UZFE, 3URFBE, 3URFE; UCK60L-GKALKA, UCK60L-GKASKA, UCK65L-GKALKA, UCK65L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
View related parts
Toyota Sequoia Rear Door Lock Assembly, Right
Part Number: 69305-0C010
Product Specifications
- Other Name: Lock Assy, Rear Door, Rh; Lock, Lock Assembly
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK35L-GKBLKA, UCK35L-GKBSKA, UCK35L-GKSLKA, UCK35L-GKSSKA, UCK45L-GKBLKA, UCK45L-GKBSKA, UCK45L-GKSLKA, UCK45L-GKSSKA
View related parts
Toyota Sequoia Rear Door Lock Assembly, Left
Part Number: 69306-0C010
Product Specifications
- Other Name: Lock Assy, Rear Door, Lh; Lock, Lock Assembly
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK35L-GKBLKA, UCK35L-GKBSKA, UCK35L-GKSLKA, UCK35L-GKSSKA, UCK45L-GKBLKA, UCK45L-GKBSKA, UCK45L-GKSLKA, UCK45L-GKSSKA
View related parts

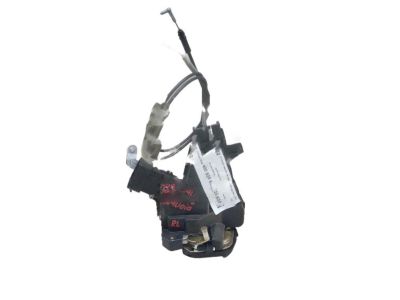

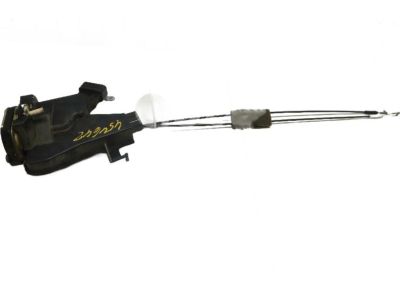

Toyota Sequoia Rear Door Lock Assembly W/Motor, Left
Part Number: 69060-0C010
Product Specifications
- Other Name: Lock Assy, Rear Door W/Motor, Lh
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK35L-GKBLKA, UCK35L-GKBSKA, UCK35L-GKSLKA, UCK35L-GKSSKA, UCK45L-GKBLKA, UCK45L-GKBSKA, UCK45L-GKSLKA, UCK45L-GKSSKA
View related parts
Toyota Sequoia Rear Door Lock Assembly W/Motor, Right
Part Number: 69050-0C010
Product Specifications
- Other Name: Lock Assy, Rear Door W/Motor, Rh
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK35L-GKBLKA, UCK35L-GKBSKA, UCK35L-GKSLKA, UCK35L-GKSSKA, UCK45L-GKBLKA, UCK45L-GKBSKA, UCK45L-GKSLKA, UCK45L-GKSSKA

Toyota Sequoia Door Latch Assembly

If you are in demand for superior quality and affordable OEM Toyota Sequoia Door Latch Assembly, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sequoia Door Latch Assembly. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sequoia Door Latch Assembly Parts Questions & Experts Answers

Rear Door Lock Assembly W/Motor, Left
69060-0C060
Q: How do you remove and install the door latch, lock cylinder, and handles on Toyota Sequoia?
A: On models equipped with power windows and door locks, disconnect the cable from the negative battery terminal. Remove the door trim panel and the plastic watershield. Working through the large access hole, disengage the rod to the outside handle and the lock cylinder by rotating the retaining clip up and disconnecting the rod from the outside handle. The door lock rod is attached by plastic clips, which can be removed by unsnapping the portion engaging the connecting rod and pulling the rod out of its locating hole. Remove the screws securing the latch to the door, then pull the latch back enough to disconnect the electrical connector at the latch. Remove the latch assembly through the door opening with the two cables from the inside door handle still attached to the latch. Installation is the reverse of removal. To remove the outside handle and lock cylinder assembly, raise the window before removing the door trim panel and watershield. Remove an access plug at the rear of the door. Working through the access hole, loosen the TORX screw and remove the lock cylinder cover and the door lock key cylinder as a unit. Once the lock cylinder is out, disengage the lock cover clips using a screwdriver and separate the cover from the lock cylinder. Installation is the reverse of removal. Once the lock cylinder has been removed, slide the exterior handle reward and out to remove. Working from the outside of the door, remove the handle assembly exterior mounting screw. From inside of the door, disconnect the electrical connector, remove the mounting screw, disconnect the lock rod clip, and move the lock rod away from the handle. If the door latch was removed, leave the lock rod attached to the door handle assembly. Installation is the reverse of removal. Remove the door trim panel, disengage the handle-to-latch cables, and remove the cables from the handle. Remove the handle retaining screws and disengage the handle from the door trim panel. Installation is the reverse of removal.
