How to check and replace wiper motors and their components on Toyota Sienna?

When checking wiper functionality, note that power wires are typically larger and brighter, while ground wires are smaller and darker. To verify voltage, use a grounded 12-volt test light on each terminal at a connector until it lights. If wipers operate slowly, ensure the battery is in good condition and fully charged; if so, remove the wiper motor and manually operate the wiper arms, checking for binding in the linkage and pivots, which should be lubricated or repaired as needed before reinstalling the motor. If wipers still operate slowly, inspect for loose or corroded connections, particularly the ground. For wipers that fail to activate, check the fuse; if intact, connect a jumper wire between the wiper motor and ground, then retest. If the motor operates, repair the ground connection; if not, check for voltage at the motor and test it off the vehicle with jumper wires. If the motor works, inspect for binding linkage; if it doesn't, replace the motor. If there's no voltage at the motor, check the switch for voltage and the wiring for continuity. For wipers that only work on one speed, check the continuity of the wires and terminals; if they are fine, replace the switch. If the interval function is inoperative, check the wiring continuity and replace the interval module if necessary. For wipers that fail to park, check for voltage at the motor with the switch off and ignition on; if voltage is present, the limit switch is faulty, requiring motor replacement. If wipers won't shut off unless the ignition is off, disconnect the wiring from the control switch; if they stop, replace the switch, but if they continue, the limit switch in the motor is defective and needs replacement. For wipers that won't retract below the hoodline, check for mechanical obstructions and inspect the wiring for continuity; if the wiring is fine, replace the motor. To replace the wiper motor, remove the wiper arms and cowl covers, then take out the wiper linkage retaining bolts along with the motor. For the rear wiper motor, remove the liftgate interior trim panel and the wiper arm before taking out the motor and linkage mounting bolts. Finally, remove the bolts to detach the motor from the linkage assembly, and installation follows the reverse order of removal.

Genuine Toyota Sienna Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Wiper Motors found

View related parts
Toyota Sienna Motor Assembly, Front WIPER
Part Number: 85110-08030
$146.59 MSRP: $208.40
You Save: $61.81 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper; Front Motor, Motor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2020 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Motor And Bracket Assy, Rear Wiper
Part Number: 85130-AE010
$173.15 MSRP: $246.16
You Save: $73.01 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Bracket, Rear Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Motor Assy, Windshield Wiper
Part Number: 85110-08010
$182.34 MSRP: $261.46
You Save: $79.12 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Motor Assembly, Rr WIPER
Part Number: 85130-0E120
$128.92 MSRP: $183.28
You Save: $54.36 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts
Toyota Sienna Motor Assy, Windshield Wiper
Part Number: 85110-AE010
$187.21 MSRP: $268.45
You Save: $81.24 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Motor Assembly, Fr WIPER
Part Number: 85110-08050
$162.03 MSRP: $230.36
You Save: $68.33 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2024 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts

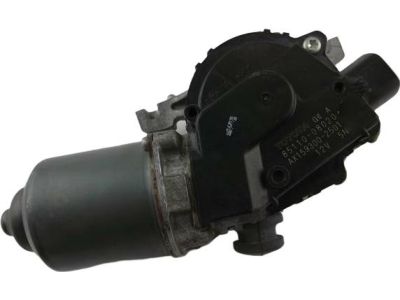

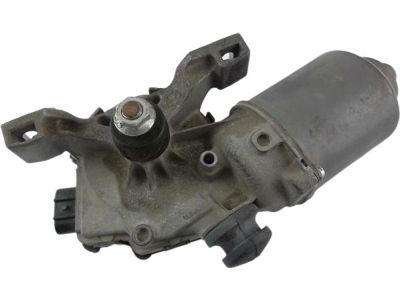

Toyota Sienna Motor Assembly, Front WIPER
Part Number: 85110-08020
$182.34 MSRP: $261.46
You Save: $79.12 (31%)
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper; Front Motor, Motor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE; 1ARFE, 2GRFE; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL33L-SBTDKA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA
View related parts
Toyota Sienna Motor Assembly, Rear WIPER
Part Number: 85130-08010
$144.72 MSRP: $205.74
You Save: $61.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor And Bracket Assy, Rear Wiper; Motor Bracket, Rear Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Motor And Bracket Assy, Rear Wiper
Part Number: 85080-45010
Product Specifications
- Other Name: Motor Bracket, Rear Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK

Toyota Sienna Wiper Motor

If you are in demand for superior quality and affordable OEM Toyota Sienna Wiper Motor, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Wiper Motor. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Wiper Motor Parts Questions & Experts Answers

Motor And Bracket Assy, Rear Wiper
85130-AE010
Q: How to check and replace wiper motors and their components on Toyota Sienna?
A: When checking wiper functionality, note that power wires are typically larger and brighter, while ground wires are smaller and darker. To verify voltage, use a grounded 12-volt test light on each terminal at a connector until it lights. If wipers operate slowly, ensure the battery is in good condition and fully charged; if so, remove the wiper motor and manually operate the wiper arms, checking for binding in the linkage and pivots, which should be lubricated or repaired as needed before reinstalling the motor. If wipers still operate slowly, inspect for loose or corroded connections, particularly the ground. For wipers that fail to activate, check the Fuse; if intact, connect a jumper wire between the wiper motor and ground, then retest. If the motor operates, repair the ground connection; if not, check for voltage at the motor and test it off the vehicle with jumper wires. If the motor works, inspect for binding linkage; if it doesn't, replace the motor. If there's no voltage at the motor, check the switch for voltage and the wiring for continuity. For wipers that only work on one speed, check the continuity of the wires and terminals; if they are fine, replace the switch. If the interval function is inoperative, check the wiring continuity and replace the interval module if necessary. For wipers that fail to park, check for voltage at the motor with the switch off and ignition on; if voltage is present, the limit switch is faulty, requiring motor replacement. If wipers won't shut off unless the ignition is off, disconnect the wiring from the control switch; if they stop, replace the switch, but if they continue, the limit switch in the motor is defective and needs replacement. For wipers that won't retract below the hoodline, check for mechanical obstructions and inspect the wiring for continuity; if the wiring is fine, replace the motor. To replace the wiper motor, remove the wiper arms and cowl covers, then take out the wiper linkage retaining bolts along with the motor. For the rear wiper motor, remove the liftgate interior trim panel and the wiper arm before taking out the motor and linkage mounting bolts. Finally, remove the bolts to detach the motor from the linkage assembly, and installation follows the reverse order of removal.
