How to inspect, remove and install the Brake Disc on Toyota T100?

To inspect the brakes, start by loosening the wheel lug nuts and raising the front of the vehicle on jackstands. Remove the wheel and reinstall the lug nuts on 4WD Tacoma and all 4Runner models to hold the Brake Disc in place. Next, remove the brake caliper and suspend it out of the way with wire. Visually inspect the disc surface for damage, such as score marks or deep grooves. Light scratches and shallow grooves are normal, but deep grooves require disc removal and refinishing. Check both sides of the disc. Use a dial indicator to check disc runout and if it exceeds the maximum limit, the disc should be refinished. Measure the disc thickness with a micrometer and ensure it is not less than the specified minimum thickness. To remove and install the disc, follow the specific steps for each model. Clean, inspect, and repack the wheel bearings while the disc/hub assembly is removed. Tighten the disc-to-hub bolts if applicable. Reassemble the hub for 4WD T100 models. Install the disc/hub assembly and adjust the wheel bearings. Install the torque plate, Brake Pad Set, and caliper for 2WD pick-up models. For 4WD pick-ups and all 4Runner models, install the caliper, brake pads, and bleed the brakes. Finally, remove the jackstands and lower the vehicle.

Genuine Toyota T100 Brake Disc

Disc Rotor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Brake Discs found

View related parts

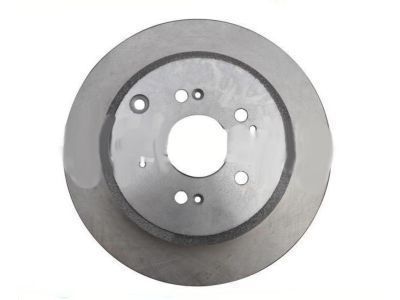

Toyota T100 Front Disc
Part Number: 43512-35200
$73.16 MSRP: $104.02
You Save: $30.86 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Disc, Front; Rotor
- Position: Front
- Replaces: 43512-35250
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1998 Toyota T100 | DLX, SR5, STD | 6 Cyl 3.0L, 6 Cyl 3.4L | 3VZE, 5VZFE; 3VZE, 5VZFE; VCK20L-TRMREA, VCK20L-TRMREK, VCK20L-TRMSEA, VCK20L-TRMSEK, VCK20L-TRSREA, VCK20L-TRSREK, VCK20L-TRSSEA, VCK20L-TRSSEK, VCK21L-CRMDKA, VCK21L-CRMDKK, VCK21L-CRMSKA, VCK21L-CRMSKK, VCK21L-CRSDKA, VCK21L-CRSDKK, VCK21L-CRSSKA, VCK21L-CRSSKK, VCK21L-TRMDKA, VCK21L-TRMDKK, VCK21L-TRMSKA, VCK21L-TRMSKK, VCK21L-TRSDKA, VCK21L-TRSDKK, VCK21L-TRSSKA, VCK21L-TRSSKK
View related parts
Toyota T100 Front Disc
Part Number: 43512-34030
Product Specifications
- Other Name: Disc, Front; Brake Rotor, Rotor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1998 Toyota T100 | DLX, SR5, STD | 4 Cyl 2.7L, 6 Cyl 3.0L, 6 Cyl 3.4L | 3RZFE, 3VZE, 5VZFE; 3RZFE, 3VZE, 5VZFE; RCK10L-TRMRKA, RCK10L-TRSRKA, VCK10L-TRMREA, VCK10L-TRMREK, VCK10L-TRMSEA, VCK10L-TRMSEK, VCK10L-TRSREA, VCK10L-TRSREK, VCK10L-TRSSEA, VCK10L-TRSSEK, VCK11L-CRMDKA, VCK11L-CRMDKK, VCK11L-CRMSKA, VCK11L-CRSDKA, VCK11L-CRSDKK, VCK11L-CRSSKA, VCK11L-TRMDKA, VCK11L-TRMDKK, VCK11L-TRMRKA, VCK11L-TRMSKA, VCK11L-TRSDKA, VCK11L-TRSDKK, VCK11L-TRSSKA
View related parts
Toyota T100 Front Disc
Part Number: 43512-34040
Product Specifications
- Other Name: Disc, Front; Brake Rotor, Rotor
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1998 Toyota T100 | DLX, STD | 6 Cyl 3.0L, 6 Cyl 3.4L | 3VZE, 5VZFE; 3VZE, 5VZFE; VCK10L-THMREA, VCK10L-THSREA, VCK11L-THMDKA, VCK11L-THSDKA

Toyota T100 Brake Disc

The Brake Disc for the Toyota T100 vehicles is part of the disc brake system responsible in providing the friction required to mode and stop the automobile. Primarily produced from grey cast iron the Brake Disc is attached to the wheel hub and its function is accompanied by the brake pad and calipers. In this Hydraulic system, the pressure when the brakes are applied squeezes the caliper and crush the pads against the rotor slowing the vehicle. Over the years the T100 has incorporated a number of Brake Disc styles including the solid and the vented rotors. Casting vaned rotors with wings is more beneficial in cooling than the solid rotors mainly used in non-performance designs. There are other modifications including drilled or slotted discs which can enhance the performance because of the improved heat dispersion and reduction of noise at the same time, however, the pads can wear out much faster. Generally, proper servicing and checking of the Brake Disc is important for Toyota T100 so that their vehicles can have enhanced braking power and be safe.

If you are in demand for superior quality and affordable OEM Toyota T100 Brake Disc, then shop with us! We own a wide range of the reduced-priced genuine Toyota T100 Brake Disc. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota T100 Brake Disc Parts Questions & Experts Answers

Front Disc
43512-35200
Q: How to inspect, remove and install the Brake Disc on Toyota T100?
A: To inspect the brakes, start by loosening the wheel lug nuts and raising the front of the vehicle on jackstands. Remove the wheel and reinstall the lug nuts on 4WD Tacoma and all 4Runner models to hold the Brake Disc in place. Next, remove the Brake Caliper and suspend it out of the way with wire. Visually inspect the disc surface for damage, such as score marks or deep grooves. Light scratches and shallow grooves are normal, but deep grooves require disc removal and refinishing. Check both sides of the disc. Use a dial indicator to check disc runout and if it exceeds the maximum limit, the disc should be refinished. Measure the disc thickness with a micrometer and ensure it is not less than the specified minimum thickness. To remove and install the disc, follow the specific steps for each model. Clean, inspect, and repack the wheel bearings while the disc/hub assembly is removed. Tighten the disc-to-hub bolts if applicable. Reassemble the hub for 4WD T100 models. Install the disc/hub assembly and adjust the wheel bearings. Install the torque plate, Brake Pad Set, and caliper for 2WD pick-up models. For 4WD pick-ups and all 4Runner models, install the caliper, brake pads, and bleed the brakes. Finally, remove the jackstands and lower the vehicle.
