How do you disconnect and replace the power steering pump on Toyota T100?

Disconnect the cable from the negative terminal of the battery, ensuring that the lockout feature of the anti-theft audio system is turned off if applicable. For T100 and Tacoma models with a V6 engine, remove the air cleaner assembly. Next, remove the serpentine drivebelt. Position a drain pan under the power steering pump and disconnect the pressure and return hoses from the backside of the pump, loosening the hose clamp to detach the return hose and removing the banjo bolt that connects the pressure line to the pump; plug the hoses to prevent contaminants from entering. If replacing the power steering pump, remove the pulley by jamming an extension or tool through one of the pulley holes to immobilize it, then remove the nut. Alternatively, the pulley can be removed after taking the pump out, but it requires securing the pump in a bench vise. Remove the pump mounting fasteners and lift the pump from the engine compartment, being careful not to spill fluid on painted surfaces. Installation is the reverse of removal, ensuring the pulley nut and pump mounting bolts are tightened securely. Finally, fill the power steering reservoir with the recommended fluid and bleed the system as needed.

Genuine Toyota T100 Power Steering Pump

Power Steering Pump Unit

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

9 Power Steering Pumps found

View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-34031
$328.65 MSRP: $471.26
You Save: $142.61 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 44320-26250
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1997 Toyota T100 | STD | 4 Cyl 2.7L | 3RZFE; 3RZFE; RCK10L-TRMRKA, RCK10L-TRSRKA
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-34030
$328.65 MSRP: $471.26
You Save: $142.61 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 44320-26250
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1995 Toyota T100 | STD | 4 Cyl 2.7L | 3RZFE; 3RZFE; RCK10L-TRMRKA, RCK10L-TRSRKA
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-0W020
$323.80 MSRP: $464.31
You Save: $140.51 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Steering Pump
- Replaces: 44320-34050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1998 Toyota T100 | DLX, SR5, STD | 6 Cyl 3.4L | 5VZFE; 5VZFE; VCK11L-CRMDKA, VCK11L-CRMDKK, VCK11L-CRMSKA, VCK11L-CRSDKA, VCK11L-CRSDKK, VCK11L-CRSSKA, VCK11L-THMDKA, VCK11L-THSDKA, VCK11L-TRMDKA, VCK11L-TRMDKK, VCK11L-TRMRKA, VCK11L-TRMSKA, VCK11L-TRSDKA, VCK11L-TRSDKK, VCK11L-TRSSKA
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-34050
$323.80 MSRP: $464.31
You Save: $140.51 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 44320-0W020
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1997 Toyota T100 | DLX, SR5, STD | 6 Cyl 3.4L | 5VZFE; 5VZFE; VCK11L-CRMDKA, VCK11L-CRMDKK, VCK11L-CRMSKA, VCK11L-CRSDKA, VCK11L-CRSDKK, VCK11L-CRSSKA, VCK11L-THMDKA, VCK11L-THSDKA, VCK11L-TRMDKA, VCK11L-TRMDKK, VCK11L-TRMRKA, VCK11L-TRMSKA, VCK11L-TRSDKA, VCK11L-TRSDKK, VCK11L-TRSSKA
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-34010
Product Specifications
- Other Name: Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1995 Toyota T100 | SR5, STD | 6 Cyl 3.0L | 3VZE; 3VZE; VCK10L-THMREA, VCK10L-THSREA, VCK10L-TRMREA, VCK10L-TRMREK, VCK10L-TRMSEA, VCK10L-TRMSEK, VCK10L-TRSREA, VCK10L-TRSREK, VCK10L-TRSSEA, VCK10L-TRSSEK
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-34020
Product Specifications
- Other Name: Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1993-1995 Toyota T100 | SR5, STD | 6 Cyl 3.0L | 3VZE; 3VZE; VCK20L-TRMREA, VCK20L-TRMREK, VCK20L-TRMSEA, VCK20L-TRMSEK, VCK20L-TRSREA, VCK20L-TRSREK, VCK20L-TRSSEA, VCK20L-TRSSEK
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-0W030
Product Specifications
- Other Name: Power Steering Pump
- Replaces: 44320-34060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1998 Toyota T100 | DLX, SR5 | 6 Cyl 3.4L | 5VZFE; 5VZFE; VCK21L-CRMDKA, VCK21L-CRMDKK, VCK21L-CRMSKA, VCK21L-CRMSKK, VCK21L-CRSDKA, VCK21L-CRSDKK, VCK21L-CRSSKA, VCK21L-CRSSKK, VCK21L-TRMDKA, VCK21L-TRMDKK, VCK21L-TRMSKA, VCK21L-TRMSKK, VCK21L-TRSDKA, VCK21L-TRSDKK, VCK21L-TRSSKA, VCK21L-TRSSKK
View related parts

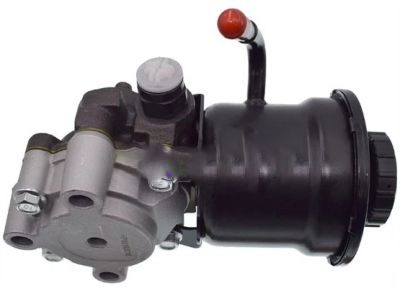

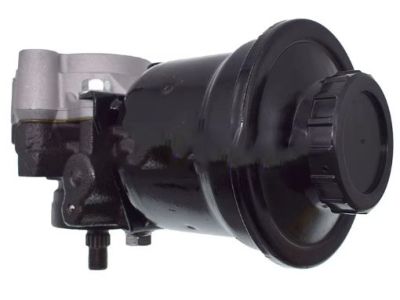

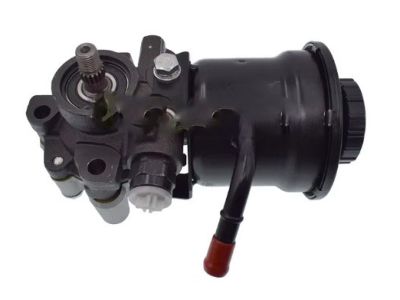

Toyota T100 Pump Assy, Vane
Part Number: 44320-34060
Product Specifications
- Replaced by: 44320-0W030
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1994-1997 Toyota T100 | DLX, SR5 | 6 Cyl 3.4L | 5VZFE; 5VZFE; VCK21L-CRMDKA, VCK21L-CRMDKK, VCK21L-CRMSKA, VCK21L-CRMSKK, VCK21L-CRSDKA, VCK21L-CRSDKK, VCK21L-CRSSKA, VCK21L-CRSSKK, VCK21L-TRMDKA, VCK21L-TRMDKK, VCK21L-TRMSKA, VCK21L-TRMSKK, VCK21L-TRSDKA, VCK21L-TRSDKK, VCK21L-TRSSKA, VCK21L-TRSSKK
View related parts
Toyota T100 Pump Assy, Vane
Part Number: 44320-0W010
Product Specifications
- Other Name: Power Steering Pump
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-1998 Toyota T100 | STD | 4 Cyl 2.7L | 3RZFE; 3RZFE; RCK10L-TRMRKA, RCK10L-TRSRKA

Toyota T100 Power Steering Pump

If you are in demand for superior quality and affordable OEM Toyota T100 Power Steering Pump, then shop with us! We own a wide range of the reduced-priced genuine Toyota T100 Power Steering Pump. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota T100 Power Steering Pump Parts Questions & Experts Answers

Pump Assy, Vane
44320-34030
Q: How do you disconnect and replace the power steering pump on Toyota T100?
A: Disconnect the cable from the negative terminal of the battery, ensuring that the lockout feature of the anti-theft audio system is turned off if applicable. For T100 and Tacoma models with a V6 engine, remove the air cleaner assembly. Next, remove the serpentine drivebelt. Position a drain pan under the power steering pump and disconnect the pressure and return hoses from the backside of the pump, loosening the hose clamp to detach the return hose and removing the banjo bolt that connects the pressure line to the pump; plug the hoses to prevent contaminants from entering. If replacing the power steering pump, remove the pulley by jamming an extension or tool through one of the pulley holes to immobilize it, then remove the nut. Alternatively, the pulley can be removed after taking the pump out, but it requires securing the pump in a bench vise. Remove the pump mounting fasteners and lift the pump from the engine compartment, being careful not to spill fluid on painted surfaces. Installation is the reverse of removal, ensuring the pulley nut and pump mounting bolts are tightened securely. Finally, fill the power steering reservoir with the recommended fluid and bleed the system as needed.
