How to remove and install a radiator and coolant reservoir on 1995 through 2004 Toyota Tacoma?

Disconnect the negative battery cable. Caution: If the stereo in your vehicle is equipped with an anti-theft system, make sure you have the correct activation code before disconnecting the battery. Drain the coolant into a container. Detach the upper and lower radiator hoses from the radiator. If the hoses stick, twist them with a pair of large pliers to break the bond, but be careful not to damage the fittings on the radiator. Disconnect the reservoir hose from the radiator filler neck. Disconnect the air pipe from the top of the radiator. Remove the cooling fan and fan shroud. If equipped with an automatic transmission, disconnect the cooler lines from the radiator. Place a drip pan to catch the fluid and cap the fittings. Remove the battery and the battery tray if it will interfere with removal of the radiator. Remove the radiator grille. Remove the radiator mounting bolts. Lift out the radiator. Be aware of dripping fluids and the sharp fins. With the radiator removed, it can be inspected for leaks, damage and internal blockage. If in need of repairs, have a radiator shop or dealer service department perform the work as special techniques are required. Bugs and dirt can be cleaned from the radiator with compressed air and a soft brush. Don't bend the cooling fins as this is done. Installation is the reverse of the removal procedure. After installation, fill the cooling system with the proper mixture of antifreeze and water. Start the engine and check for leaks. Allow the engine to reach normal operating temperature, indicated by both radiator hoses becoming hot. Recheck the coolant level and add more if required. On automatic transmission equipped models, check and add fluid as needed. On most models, the coolant reservoir simply pulls up and out of the bracket next to the battery. Pour the coolant into a container. Wash out and inspect the reservoir for cracks and chafing. Replace it if damaged. Installation is the reverse of removal.

How do you remove and install a coolant reservoir on 2005 through 2009 Toyota Tacoma?

In order to remove the reservoir, you will first need to remove the hose clamp and disconnect the overflow hose, from the reservoir. Next, remove the engine cooling fan shroud and drain the coolant into a separate container, making sure the reservoir is completely empty. It is during this time that you will need to wash out and check the reservoir for any cracks or chafing. If any damage is found, replace the Coolant Reservoir. For installation, follow these steps in the reserve order.

Genuine Toyota Tacoma Coolant Reservoir

Coolant Tank Reservoir

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

10 Coolant Reservoirs found

View related parts

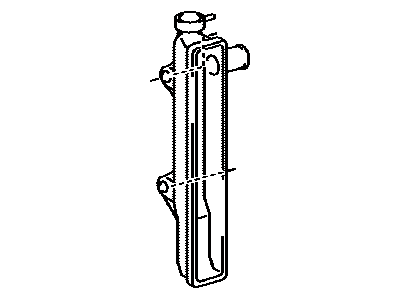

Toyota Tacoma Tank Assy, Radiator Reserve
Part Number: 16470-0C011
$110.52 MSRP: $155.78
You Save: $45.26 (30%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Reservoir Assembly
- Replaces: 16470-0C010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2004 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L | 2RZFE, 3RZFE, 5VZFE; 2RZFE, 3RZFE, 5VZFE; RZN140L-TRMDKAB, RZN140L-TRPDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRPDKAB, RZN150L-CRSDKAB, RZN161L-TRMDKAB, RZN161L-TRPDKAB, RZN171L-CRMDKAB, RZN171L-CRPDKAB, RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN150L-CRMDKAB, VZN150L-CRSDKAB, VZN160L-TRMDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB, VZN170L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB
View related parts
Toyota Tacoma Tank Assy, Radiator Reserve
Part Number: 16470-0C010
$110.52 MSRP: $155.78
You Save: $45.26 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Replaced by: 16470-0C011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1997 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L | 2RZFE, 3RZFE, 5VZFE; 2RZFE, 3RZFE, 5VZFE; RZN140L-TRMDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRSDKAB, RZN161L-TRMDKAB, RZN161L-TRPDKAB, RZN171L-CRMDKAB, RZN171L-CRPDKAB, VZN150L-CRMDKAB, VZN150L-CRSDKAB, VZN160L-TRMDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB
View related parts
Toyota Tacoma Tank, Radiator, Upper
Part Number: 16441-0P110
$147.35 MSRP: $209.49
You Save: $62.14 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Upper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2016 Toyota Tacoma | Base | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN225L-CRFDKA, GRN245L-CRADKA, GRN245L-CRFDKA, GRN245L-PRADKA, GRN245L-PRFDKA, GRN250L-PRADKA, GRN265L-CRADKA, GRN265L-CRFDKA, GRN265L-PRADKA, GRN270L-PRADKA
View related parts
Toyota Tacoma Tank, Radiator, Lower
Part Number: 16461-0P110
$158.87 MSRP: $225.86
You Save: $66.99 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2016 Toyota Tacoma | Base | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN245L-CRADKA, GRN245L-PRADKA, GRN250L-PRADKA, GRN265L-CRADKA, GRN265L-PRADKA, GRN270L-PRADKA
View related parts
Toyota Tacoma Tank Kit, Radiator, Lower
Part Number: 04166-04020
Product Specifications
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-1996 Toyota Tacoma | DLX | 4 Cyl 2.4L | 2RZFE; 2RZFE; RZN140L-TRSDKAB, RZN150L-CRSDKAB
View related parts
Toyota Tacoma Tank, Radiator, Lower
Part Number: 16461-0P120
Product Specifications
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2016 Toyota Tacoma | Base | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN225L-CRFDKA, GRN245L-CRFDKA, GRN245L-PRFDKA, GRN265L-CRFDKA
View related parts
Toyota Tacoma Tank Kit, Radiator, Lower
Part Number: 04166-04010
Product Specifications
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2004 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L | 2RZFE, 3RZFE, 5VZFE; 2RZFE, 3RZFE, 5VZFE; RZN140L-TRMDKAB, RZN150L-CRMDKAB, RZN161L-TRMDKAB, RZN171L-CRMDKAB, VZN150L-CRMDKAB, VZN150L-CRSDKAB, VZN160L-TRMDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB
View related parts
Toyota Tacoma Tank Kit, Radiator, Lower
Part Number: 04166-04030
Product Specifications
- Position: Lower
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2004 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L | 2RZFE, 3RZFE, 5VZFE; 2RZFE, 3RZFE, 5VZFE; RZN140L-TRPDKAB, RZN140L-TRSDKAB, RZN150L-CRPDKAB, RZN150L-CRSDKAB, RZN161L-TRPDKAB, RZN171L-CRPDKAB, RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN150L-CRSDKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB, VZN170L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB
View related parts
Toyota Tacoma Tank Kit, Radiator, Upper
Part Number: 04165-04010
Product Specifications
- Position: Upper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2004 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.4L, 4 Cyl 2.7L, 6 Cyl 3.4L | 2RZFE, 3RZFE, 5VZFE; 2RZFE, 3RZFE, 5VZFE; RZN140L-TRMDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRSDKAB, RZN161L-TRMDKAB, RZN161L-TRPDKAB, RZN171L-CRMDKAB, RZN171L-CRPDKAB, RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN150L-CRMDKAB, VZN150L-CRSDKAB, VZN160L-TRMDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB, VZN170L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB
View related parts
Toyota Tacoma Tank Kit, Radiator, Upper
Part Number: 04165-04020
Product Specifications
- Position: Upper
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1996-2004 Toyota Tacoma | DLX | 4 Cyl 2.4L | 2RZFE; 2RZFE; RZN140L-TRMDKAB, RZN140L-TRPDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRPDKAB, RZN150L-CRSDKAB

Toyota Tacoma Coolant Reservoir

The coolant reservoir in Toyota Tacoma is a component that is properly known as coolant recovery tank, and is essential in regulating the temperate of the car's engine. This plastic container accumulates the coolant that is warmed by the engine and then, after cooling down, it returns this coolant back to the system which will not allow the coolant to leak and damage the engine. There are two types of Coolant Reservoirs used in Tacoma vehicles: Two types of containers are currently available: pressurized and non-pressurized; this is determined by their crown closure. As for this component, there can be established that its proper maintenance is critical for the flawless function of the engine.

If you are in demand for superior quality and affordable OEM Toyota Tacoma Coolant Reservoir, then shop with us! We own a wide range of the reduced-priced genuine Toyota Tacoma Coolant Reservoir. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Tacoma Coolant Reservoir Parts Questions & Experts Answers

Tank Assy, Radiator Reserve
16470-0C011
Q: How to remove and install a radiator and coolant reservoir on 1995 through 2004 Toyota Tacoma?
A: Disconnect the negative battery cable. Caution: If the stereo in your vehicle is equipped with an anti-theft system, make sure you have the correct activation code before disconnecting the battery. Drain the coolant into a container. Detach the upper and lower radiator hoses from the radiator. If the hoses stick, twist them with a pair of large pliers to break the bond, but be careful not to damage the fittings on the radiator. Disconnect the reservoir hose from the radiator filler neck. Disconnect the air pipe from the top of the radiator. Remove the cooling fan and fan shroud. If equipped with an automatic transmission, disconnect the cooler lines from the radiator. Place a drip pan to catch the fluid and cap the fittings. Remove the battery and the battery tray if it will interfere with removal of the radiator. Remove the radiator grille. Remove the radiator mounting bolts. Lift out the radiator. Be aware of dripping fluids and the sharp fins. With the radiator removed, it can be inspected for leaks, damage and internal blockage. If in need of repairs, have a radiator shop or dealer service department perform the work as special techniques are required. Bugs and dirt can be cleaned from the radiator with compressed air and a soft brush. Don't bend the cooling fins as this is done. Installation is the reverse of the removal procedure. After installation, fill the cooling system with the proper mixture of antifreeze and water. Start the engine and check for leaks. Allow the engine to reach normal operating temperature, indicated by both radiator hoses becoming hot. Recheck the coolant level and add more if required. On automatic transmission equipped models, check and add fluid as needed. On most models, the coolant reservoir simply pulls up and out of the bracket next to the battery. Pour the coolant into a container. Wash out and inspect the reservoir for cracks and chafing. Replace it if damaged. Installation is the reverse of removal.
Tank, Radiator, Upper
16441-0P110
Q: How do you remove and install a coolant reservoir on 2005 through 2009 Toyota Tacoma?
A: In order to remove the reservoir, you will first need to remove the hose clamp and disconnect the overflow hose, from the reservoir. Next, remove the engine cooling fan shroud and drain the coolant into a separate container, making sure the reservoir is completely empty. It is during this time that you will need to wash out and check the reservoir for any cracks or chafing. If any damage is found, replace the Coolant Reservoir. For installation, follow these steps in the reserve order.
