How do you remove and replace the front stabilizer bar,Bushing and link on 2005 through 2009 Toyota Tacoma?

Raise the front of the vehicle and support it securely on jackstands. Remove the nuts from the sway bar links and detach the links from the bar, also removing the nuts attaching the links to the steering knuckles for 4WD or Pre-Runner models, or to the lower control arms for 2WD models, then remove the links. On 2WD models, remove the rubber bushings from the top of the link, using an Allen wrench to prevent the ballstud from turning when necessary. Remove the sway bar bushing bracket bolts and brackets to separate the sway bar from the frame, noting the position of the bushing against the sleeve on the bar. Remove the sway bar kit and the rubber bushings from it, taking note of the position of the slit openings. Inspect the rubber bushings for cracks, tears, and deterioration, replacing them if worn or damaged. Check the balljoints on the ends of each link for looseness or excessive wear, measuring the rotational torque required to turn the balljoint with an inch-pound torque wrench and comparing the reading to the specified value. Install the rubber bushings against the bushing stoppers on the sway bar with the slit openings facing towards the front, and complete the installation by reversing the removal process, ensuring all fasteners are tightened to the specified torque values.

Genuine Toyota Tacoma Sway Bar Bushing

Stabilizer Sway Bar Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Sway Bar Bushings found

View related parts

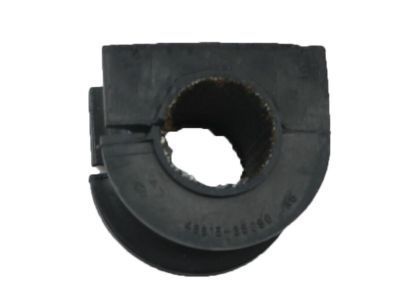

Toyota Tacoma Bush, Front STABILIZER Bar
Part Number: 48815-35090
$16.84 MSRP: $23.53
You Save: $6.69 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.7L, 6 Cyl 3.4L | 3RZFE, 5VZFE; 3RZFE, 5VZFE; RZN161L-TRMDKAB, RZN161L-TRPDKAB, RZN171L-CRMDKAB, RZN171L-CRPDKAB, RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB, VZN170L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB
View related parts
Toyota Tacoma Bush, STABILIZER
Part Number: 48815-04080
$13.45 MSRP: $18.79
You Save: $5.34 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Lower Bracket, LH; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2022 Toyota Tacoma | Base, Limited, SR5 | 4 Cyl 2.7L, 6 Cyl 3.5L, 6 Cyl 4.0L | 1GRFE, 2GRFKS, 2TRFE; 1GRFE, 2GRFKS, 2TRFE; GRN245L-CRADKA, GRN245L-CRFDKA, GRN245L-PRADKA, GRN245L-PRFDKA, GRN250L-PRADKA, GRN265L-CRADKA, GRN265L-CRFDKA, GRN265L-PRADKA, GRN270L-PRADKA, GRN305L-CRFSHA, GRN305L-CRTSHA, GRN305L-PRFSHA, GRN305L-PRTLHA, GRN305L-PRTSHA, GRN310L-PRTLHA, GRN310L-PRTSHA, GRN325L-CRTSHA, GRN325L-PRTLHA, GRN325L-PRTSHA, GRN330L-PRTLHA, GRN330L-PRTSHA, TRN240L-TRMDKA, TRN240L-TRPDKA, TRN245L-CRMDKA, TRN245L-CRMSKA, TRN245L-CRPDKA, TRN245L-CRTSKA, TRN260L-TRMDKA, TRN265L-CRMDKA, TRN265L-CRPDKA, TRN265L-CRTSKA, TRN265L-PRPDKA, TRN265L-PRTSKA
View related parts
Toyota Tacoma Bush, STABILIZER
Part Number: 48815-AD030
$13.65 MSRP: $19.08
You Save: $5.43 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Lower Bracket, RH; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2022 Toyota Tacoma | Base, SR5 | 6 Cyl 3.5L, 6 Cyl 4.0L | 1GRFE, 2GRFKS; 1GRFE, 2GRFKS; GRN245L-CRADKA, GRN245L-CRFDKA, GRN245L-PRADKA, GRN245L-PRFDKA, GRN265L-CRADKA, GRN265L-CRFDKA, GRN265L-PRADKA, GRN305L-CRFSHA, GRN305L-CRTSHA, GRN305L-PRFSHA, GRN305L-PRTSHA, GRN310L-PRTSHA, GRN325L-CRTSHA, GRN325L-PRTSHA, GRN330L-PRTSHA
View related parts
Toyota Tacoma Bush, STABILIZER
Part Number: 48815-04070
$15.99 MSRP: $22.35
You Save: $6.36 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Lower Bracket, LH; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2016 Toyota Tacoma | Base | 4 Cyl 2.7L | 2TRFE; 2TRFE; TRN220L-TRMDKA, TRN220L-TRPDKA, TRN225L-CRMDKA, TRN225L-CRPDKA, TRN225L-PRPDKA
View related parts
Toyota Tacoma Bush, STABILIZER
Part Number: 48815-AD050
$16.53 MSRP: $23.10
You Save: $6.57 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bush, Front Stabilizer Lower Bracket, LH; Bushing, Stabilizer Bar Bushing
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2016 Toyota Tacoma | Base | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN225L-CRFDKA
View related parts
Toyota Tacoma Bush, Stabilizer, Rear
Part Number: 48818-AD010
$11.61 MSRP: $16.23
You Save: $4.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Bushing, Stabilizer Bar Bushing
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2016 Toyota Tacoma | Base | 6 Cyl 4.0L | 1GRFE; 1GRFE; GRN225L-CRFDKA
View related parts
Toyota Tacoma Collar
Part Number: 90440-14006
$8.70 MSRP: $12.15
You Save: $3.45 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Collar(For Stabilizer Bar); Stabilizer Bar Collar
- Comment: (FOR STABILIZER BAR)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2001 Toyota Tacoma | DLX | 4 Cyl 2.4L, 6 Cyl 3.4L | 2RZFE, 5VZFE; 2RZFE, 5VZFE; RZN140L-TRMDKAB, RZN140L-TRPDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRPDKAB, RZN150L-CRSDKAB, VZN150L-CRMDKAB, VZN150L-CRSDKAB
View related parts
Toyota Tacoma Bush, Front STABILIZER Bar
Part Number: 48815-AD020
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tacoma | DLX | 6 Cyl 3.4L | 5VZFE; 5VZFE; VZN150L-CRMDKAB, VZN150L-CRSDKAB
View related parts
Toyota Tacoma Bush, Front STABILIZER Bar
Part Number: 48815-04030
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2001 Toyota Tacoma | DLX | 4 Cyl 2.4L, 6 Cyl 3.4L | 2RZFE, 5VZFE; 2RZFE, 5VZFE; RZN140L-TRMDKAB, RZN140L-TRPDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRPDKAB, RZN150L-CRSDKAB, VZN150L-CRMDKAB, VZN150L-CRSDKAB
View related parts
Toyota Tacoma Bush, STABILIZER
Part Number: 48815-AD040
Product Specifications
- Other Name: Bush, Stabilizer(For Rear); Bushing
- Comment: (FOR REAR)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tacoma | DLX | 6 Cyl 3.4L | 5VZFE; 5VZFE; VZN150L-CRMDKAB, VZN150L-CRSDKAB
View related parts
Toyota Tacoma Bush, Front STABILIZER Bar
Part Number: 48815-04050
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2000-2004 Toyota Tacoma | DLX | 4 Cyl 2.4L | 2RZFE; 2RZFE; RZN140L-TRMDKAB, RZN140L-TRPDKAB, RZN140L-TRSDKAB, RZN150L-CRMDKAB, RZN150L-CRPDKAB, RZN150L-CRSDKAB
View related parts
Toyota Tacoma Bush, Front STABILIZER Bar
Part Number: 48815-04040
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1995-2001 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.7L, 6 Cyl 3.4L | 3RZFE, 5VZFE; 3RZFE, 5VZFE; RZN161L-TRMDKAB, RZN161L-TRPDKAB, RZN171L-CRMDKAB, RZN171L-CRPDKAB, RZN191L-TRPDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN160L-TRMDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB, VZN170L-PRPDKAB
View related parts
Toyota Tacoma Bush, Front STABILIZER Bar
Part Number: 48815-AD010
Product Specifications
- Other Name: Bush, Front Stabilizer Bar, NO.1; Bushing, Stabilizer Bar Bushing
- Manufacturer Note: OFF ROAD PACKAGE
- Position: Front
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001 Toyota Tacoma | DLX, SR5 | 4 Cyl 2.7L, 6 Cyl 3.4L | 3RZFE, 5VZFE; 3RZFE, 5VZFE; RZN171L-CRMDKAB, RZN196L-CRPDKAB, RZN196L-PRPDKAB, VZN170L-CRMDKAB, VZN170L-CRMGKAB, VZN170L-CRPDKAB, VZN170L-CRPGKAB, VZN170L-PRPDKAB, VZN195L-CRPDKAB, VZN195L-PRPDKAB

Toyota Tacoma Sway Bar Bushing

If you are in demand for superior quality and affordable OEM Toyota Tacoma Sway Bar Bushing, then shop with us! We own a wide range of the reduced-priced genuine Toyota Tacoma Sway Bar Bushing. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Tacoma Sway Bar Bushing Parts Questions & Experts Answers

Bush, STABILIZER
48815-AD050
Q: How do you remove and replace the front stabilizer bar,Bushing and link on 2005 through 2009 Toyota Tacoma?
A: Raise the front of the vehicle and support it securely on jackstands. Remove the nuts from the sway bar links and detach the links from the bar, also removing the nuts attaching the links to the steering knuckles for 4WD or Pre-Runner models, or to the lower Control Arms for 2WD models, then remove the links. On 2WD models, remove the rubber bushings from the top of the link, using an Allen wrench to prevent the ballstud from turning when necessary. Remove the sway bar bushing bracket bolts and brackets to separate the sway bar from the frame, noting the position of the bushing against the sleeve on the bar. Remove the sway bar kit and the rubber bushings from it, taking note of the position of the slit openings. Inspect the rubber bushings for cracks, tears, and deterioration, replacing them if worn or damaged. Check the balljoints on the ends of each link for looseness or excessive wear, measuring the rotational torque required to turn the balljoint with an inch-pound torque wrench and comparing the reading to the specified value. Install the rubber bushings against the bushing stoppers on the sway bar with the slit openings facing towards the front, and complete the installation by reversing the removal process, ensuring all fasteners are tightened to the specified torque values.
