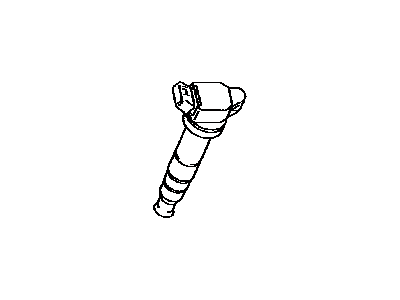

Toyota 90919-A2005 Ignition Coil Assembly

2007-2022 Toyota 90919A2005

Customer Questions & Expert Answers (10)
Toyota 90919-A2005 Ignition Coil Assembly
  • Part Description
    Coil Assembly, Ignition
  • Part Name Code
    19500
  • Replaces
    90919-02256, 90919-A2003, 90919-02255
  • Manufacturer
    Toyota
Make sure this part fits
$89.31 MSRP: $125.89
You Save: $36.58 (30%)
Ships in 1 Business Day
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • Product Specifications

    BrandGenuine Toyota
    Part Name Code19500
    Manufacturer Part Number90919-A2005
    Part DescriptionCoil Assembly, Ignition
    Other NamesCoil, Ignition Coil
    Item Dimensions6.7 x 4.0 x 2.9 inches
    Item Weight1.30 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces90919-02256, 90919-A2003, 90919-02255
    ManufacturerToyota
    SKU90919-A2005
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
    Shipping & ReturnShipping Policy Return Policy
    Warning: California’s Proposition 65
  • Vehicle Fitment

    Year Make Model Trim & Engine Important vehicle option details
    2011-2016 Scion tC4 Cyl 2.5L2ARFE; 2ARFE; AGT20L-ALFGKA, AGT20L-ALFGKK, AGT20L-ALTGKA, AGT20L-ALTGKK
    2010-2022 Toyota 4Runner6 Cyl 4.0L1GRFE; 1GRFE; GRN280L-GKAGKA, GRN285L-GKAGKA
    2013-2018 Toyota AvalonLimited, XLE|4 Cyl 2.5L2ARFXE; 2ARFXE; AVX40L-AEXGBA, AVX40L-AEXPBA
    2009-2017 Toyota CamryLE, N, SE, XLE, XSE|4 Cyl 2.5L, 6 Cyl 3.5L2ARFE, 2ARFXE, 2GRFE; 2ARFE, 2ARFXE; ASV40L-AETGKA, 2ARFXE; ASV40L-CEFNKA, 2GRFE; GSV40L-AETGKA, ASV40L-AETNKA, ASV40L-CEFNKA, ASV40L-CEFSKA, ASV40L-CETGKA, ASV40L-CETNKA, ASV40L-CETSKA, ASV50L-CETEKA, ASV50L-CETGKA, ASV50L-CETNKA, ASV50L-CETPKA, ASV50L-CETSKA, AVV50L-CEXGBA, AVV50L-CEXNBA, AVV50L-CEXSBA, GSV40L-AETNKA
    2009-2014 Toyota FJ Cruiser6 Cyl 4.0L1GRFE; 1GRFE; GSJ10L-GKASKA, GSJ15L-GKASKA, GSJ15L-GKFSKA
    2008-2019 Toyota HighlanderGrande, Limited, Medium, STD, Sport|4 Cyl 2.7L, 6 Cyl 3.5L1ARFE, 2GRFE, 2GRFKS, 2GRFXE, 2GRFXS; 1ARFE; ASU40L-ARTNKA, 1ARFE; ASU50L-ARTNKA, 2GRFE, 2GRFKS, 2GRFXE, 2GRFXS; GSU40L-ARAGKA, ASU40L-BRTNKA, ASU50L-ARTNKA, GSU40L-ARAMKA, GSU40L-ARANKA, GSU40L-ARASKA, GSU40L-BRAGKA, GSU40L-BRAMKA, GSU40L-BRANKA, GSU40L-BRASKA, GSU45L-ARAGKA, GSU45L-ARAMKA, GSU45L-ARANKA, GSU45L-ARASKA, GSU45L-BRAGKA, GSU45L-BRAMKA, GSU45L-BRANKA, GSU45L-BRASKA, GSU50L-ARTGKA, GSU50L-ARTMKA, GSU50L-ARTNKA, GSU50L-ARZGHA, GSU50L-ARZMHA, GSU50L-ARZNHA, GSU55L-ARTGKA, GSU55L-ARTMKA, GSU55L-ARTNKA, GSU55L-ARZGHA, GSU55L-ARZMHA, GSU55L-ARZNHA, GVU48L-BRXGKA, GVU48L-BRXNKA, GVU58L-ARXGHA, GVU58L-ARXGKA, GVU58L-ARXMHA, GVU58L-ARXMKA, GVU58L-ARXNHA, GVU58L-ARXNKA
    2008-2021 Toyota Land Cruiser8 Cyl 5.7L3URFE; 3URFE; URJ200L-GNTEKA, URJ200L-GNZVKA
    2008-2018 Toyota RAV4LE, Limited, SE, STD, Sport, X, XLE|4 Cyl 2.5L, 6 Cyl 3.5L2ARFE, 2ARFXE, 2GRFE; 2ARFE, 2ARFE; ASA33L-CNPGKA, 2ARFXE; ASA33L-ANPGKA, 2GRFE; GSA33L-ANAGKA, ASA33L-ANPGKK, ASA33L-ANPSKA, ASA33L-ANPSKK, ASA33L-ANPXKA, ASA33L-ANPXKK, ASA33L-CNPGKA, ASA33L-CNPGKK, ASA33L-CNPSKA, ASA33L-CNPSKK, ASA33L-CNPXKA, ASA33L-CNPXKK, ASA38L-ANPGKA, ASA38L-ANPSKA, ASA38L-ANPXKA, ASA38L-CNPGKA, ASA38L-CNPGKK, ASA38L-CNPSKA, ASA38L-CNPSKK, ASA38L-CNPXKA, ASA38L-CNPXKK, ASA42L-ANTGKA, ASA42L-ANTMKA, ASA42L-ANTSKA, ASA42L-ANTXKA, ASA42L-CNTGKA, ASA42L-CNTGKK, ASA42L-CNTMKA, ASA42L-CNTMKK, ASA42L-CNTSKA, ASA42L-CNTSKK, ASA42L-CNTXKA, ASA42L-CNTXKK, ASA44L-ANTGKA, ASA44L-ANTMKA, ASA44L-ANTSKA, ASA44L-ANTXKA, ASA44L-CNTGKA, ASA44L-CNTGKK, ASA44L-CNTMKA, ASA44L-CNTMKK, ASA44L-CNTSKA, ASA44L-CNTSKK, ASA44L-CNTXKA, ASA44L-CNTXKK, AVA44L-ANXGBA, AVA44L-ANXGBK, AVA44L-ANXMBA, AVA44L-ANXMBK, AVA44L-ANXSBA, AVA44L-ANXSBK, GSA33L-ANAGKK, GSA33L-ANASKA, GSA33L-ANASKK, GSA33L-ANAXKA, GSA33L-ANAXKK, GSA33L-CNAGKA, GSA33L-CNAGKK, GSA33L-CNASKA, GSA33L-CNASKK, GSA33L-CNAXKA, GSA33L-CNAXKK, GSA38L-ANAGKA, GSA38L-ANASKA, GSA38L-ANAXKA, GSA38L-CNAGKA, GSA38L-CNAGKK, GSA38L-CNASKA, GSA38L-CNASKK, GSA38L-CNAXKA, GSA38L-CNAXKK
    2008-2022 Toyota SequoiaLimited, Platinum, SR5|8 Cyl 4.6L, 8 Cyl 5.7L1URFE, 3URFBE, 3URFE; 1URFE, 3URFBE, 3URFE; UPK60L-GKTLKA, 3URFE; USK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
    2011-2014 Toyota SiennaLE|4 Cyl 2.7L1ARFE; 1ARFE; ASL30L-PFTEKA, ASL30L-PRTEKA
    View More
  • Customer Questions & Expert Answers

    Q:
    I would like to know availability and if it is direct fit replacement Posted by ToyotaPartsDeal Specialist
    A:
    You can Select Your Vehicle to check if 90919-A2005 fits your vehicle.
    Posted by ToyotaPartsDeal Specialist
    Q:
    How do you remove and install ignition coils on Toyota Rav4? Posted by Customer
    A:
    Disconnect the cable from the negative battery terminal. Remove the engine cover by pulling up to detach the retainers. Each ignition coil is secured by a bolt; disconnect the electrical connectors, remove the mounting bolts, then pull the coils off of the spark plugs and out of the valve cover using a twisting motion. Unscrew the bolt, disconnect the electrical connector, and pull the coil straight up with a twisting motion. With the coils removed, use compressed air to blow out debris from inside and the area around the spark plug holes. Installation is the reverse of removal, applying a dab of dielectric compound to the inside of the coil boots to ensure a clean connection to the spark plugs.
    Posted by ToyotaPartsDeal Specialist
    Q:
    How to replace Ignition Coil on Toyota Sequoia? Posted by Customer
    A:
    To disconnect the negative cable from the battery, follow these steps depending on the type of engine. For V6 engines, remove the engine cover, air intake duct, and air filter housing. On 2011 and later models, remove the emission control valve set. For VB engines, remove the throttle body cover and air intake duct. Remove the plastic clips and rubber seal on the left front inner fender well splash shield. Disconnect the air switching valve hoses and unbolt the tube and air switching valve. For 2UZ-FE engines, remove the engine cover, air intake duct, and air filter housing. For 1UR-FE, 3UR-FE, and 3UR-FBE engines, remove the engine cover, air intake duct, and air filter housing. For all models, unscrew the bolt securing each ignition coil/igniter assembly, disconnect the electrical connector, and pull out the assembly. Installation is the reverse of removal.
    Posted by ToyotaPartsDeal Specialist
    Q:
    How do you access the rear ignition coils for the 2012 Toyota Avalon? Posted by Customer
    A:
    To access the rear ignition coils, remove the upper intake manifold.
    Posted by ToyotaPartsDeal Specialist
    See expert answers on similar Ignition Coil
    Q:
    How do you remove the individual ignition coil boot on a 2007 Toyota Camry? Posted by Customer
    A:
    The individual ignition coil boot directly mounts over each spark plug.
    Posted by ToyotaPartsDeal Specialist
    See expert answers on similar Ignition Coil
    Q:
    What is the process for removing the ignition coil on a 2002 Toyota Highlander V6 model? Posted by Customer
    A:
    Disconnect the electrical connector, remove the mounting bolt, and pull the coil straight up and out of the valve cover. Reinstallation is the reverse of removal.
    Posted by ToyotaPartsDeal Specialist
    See expert answers on similar Ignition Coil
    Q:
    How do you disconnect the negative cable from the battery for the 2016 Toyota Tundra? Posted by Customer
    A:
    Follow these steps depending on the type of engine.
    Posted by ToyotaPartsDeal Specialist
    See expert answers on similar Ignition Coil
    Q:
    Are these ignition coils are Denso brand. Also Part # 90919-A2005 Correct. Posted by Customer: 2012 Toyota Camry
    A:
    OE YES
    Posted by ToyotaPartsDeal Specialist 31/12/2022
    Q:
    How many ignition coils come in 1 order? Posted by Customer
    A:
    It is 1 ignition coil per order
    Posted by ToyotaPartsDeal Specialist 8/4/2020
    Q:
    Are these Toyota brand or Denso brand? Posted by Customer
    A:
    These are Denso
    Posted by ToyotaPartsDeal Specialist 7/4/2020
    If you have any questions about this product, please don't hesitate to ask us. We will be happy to help you!

Genuine Toyota Part 90919-A2005, the Right Choice

To ensure reliability, purchase Toyota part # 90919-A2005 Ignition Coil Assembly. It is sometimes referred to as Toyota Ignition Coil. For unrivaled quality, OEM parts are the ultimate choice. These parts are manufactured by Toyota's official factory using top-quality materials and undergo strict testing procedures, ensuring outstanding dependability and long-lasting durability. This part fits 2010-2022 Toyota 4Runner, 2013-2018 Toyota Avalon, 2009-2017 Toyota Camry, 2008-2019 Toyota Highlander.

ToyotaPartsDeal.com is a leading supplier of genuine Toyota parts and accessories such as Toyota 90919A2005 Ignition Coil Assembly. In need of OEM Toyota parts? Look no further than our extensive inventory of genuine Toyota parts, competitively priced to be highly exceptional in the market. They are all manufacturer-warrantied. Add to that, our easy return policy and swift delivery service, and your shopping experience promises to be the great pleasant ever. For detailed Toyota parts information, click here.
