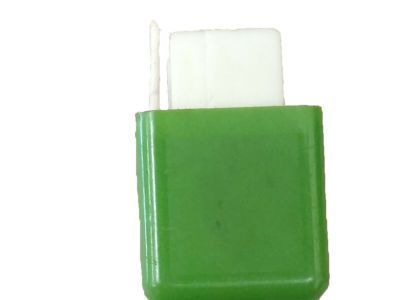

Toyota 88263-24030 Relay, Skid Control

You can Select Your Vehicle to check if 88263-24030 fits your vehicle.

Several electrical accessories in the vehicle, such as the fuel injection system, horns, starter, air conditioning/heating system, and fog lights, use relays to transmit electrical signals to the components. Relays operate by using a low-current control circuit to open and close a high-current power circuit. A defective relay will prevent the associated component from functioning properly. Various relays are mounted in engine compartment fuse/relay boxes, with the interior fuse box located on the dashboard to the left of the steering column. Early models have two separate fuse/relay boxes in the left-front area of the engine compartment, and some additional relays are located next to the interior fuse panel, requiring removal of the driver's knee bolster for access. If a faulty relay is suspected, it can be removed and tested, either by following a specific procedure or by a dealer service department or repair shop, and defective relays must be replaced as a unit. Relay identifications are typically found on the cover of the relay and on a decal inside the fuse/relay box cover. To test a relay, it's advisable to consult the wiring diagram for the circuit to determine the proper hook-ups. On most relays, two terminals correspond to the control circuit, connecting to the relay coil, while the other terminals are for the power circuit. Relays are usually marked to help identify the control and power circuit terminals. To test, connect a fused jumper wire between one control circuit terminal and the positive battery terminal, and another jumper wire between the other control circuit terminal and ground; the relay should click upon connection. If it does not click, swapping the jumper wires may be necessary. With the jumper wires connected, check for continuity between the power circuit terminals as indicated by the relay markings. If the relay fails any of these tests, it should be replaced.

With the jumper wires connected, check for continuity between the power circuit terminals as indicated by the markings on the relay.

There are four basic types of relays: normally closed types, where current flows through one circuit until the relay is energized, interrupting that circuit and completing a second circuit; normally open types; and some that include a circuit of each type.

If a relay is defective, the component it controls will not operate properly.

If any of the relay tests fail, it's advisable to replace the relay with a new one to ensure proper functioning of the associated accessory.

If a relay is defective, the component it controls will not operate properly.

The various relays are mounted in several locations throughout the vehicle.

If any of the relay tests fail, it's advisable to replace the relay with a new one to ensure proper functioning of the associated accessory.

Relays use a low-current circuit to open and close a high-current circuit.

If you cannot determine the correct hook-up from the wiring diagrams, you may be able to determine the test hook-ups from the information provided in the testing section.
