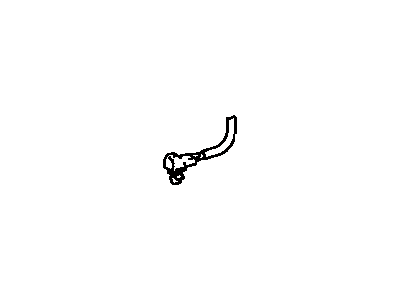

Toyota 90080-19013 Sensor, Crank Position

You can Select Your Vehicle to check if 90080-19013 fits your vehicle.

The crankshaft position sensor (CKP) determines the timing for fuel injection and ignition on each cylinder, and it is mounted on the timing chain cover next to the crankshaft pulley. A problem in the crankshaft sensor circuit will set a diagnostic trouble code. Begin by loosening the right front wheel lug nuts and disconnecting the cable from the negative battery terminal. Next, raise the front of the vehicle and support it securely on jackstands before removing the wheel and the inner fender shield. Remove the two bolts that secure the sensor and detach it, ensuring to disconnect the harness connector at the upper part of the timing chain cover. Installation is the reverse of removal, and it is important to use a new O-ring on the sensor, lightly coated with engine oil.

1. Loosen the right front wheel lug nuts.2. Disconnect the cable from the negative battery terminal.3. Raise the front of the vehicle and support it securely on jack stands.4. Remove the wheel and the inner fender shield.5. Remove the two bolts (one secures the sensor, the other is close by and secures the harness) and detach the sensor.6. At the upper part of the timing chain cover, disconnect the harness connector and remove the harness and sensor.
