Genuine Toyota Echo Wiper Motor
Windshield Wiper Motor- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
3 Wiper Motors found

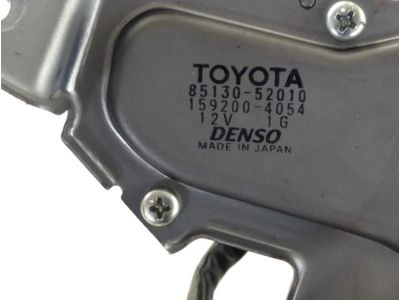

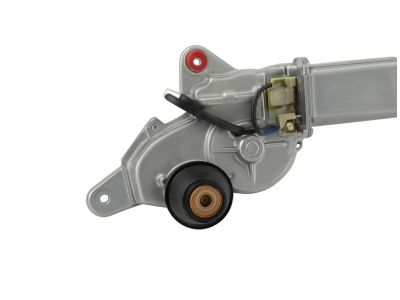

Toyota Echo Motor Assy, Rear Wiper
Part Number: 85130-52010$213.00 MSRP: $305.42You Save: $92.42 (31%)Ships in 1-3 Business Days

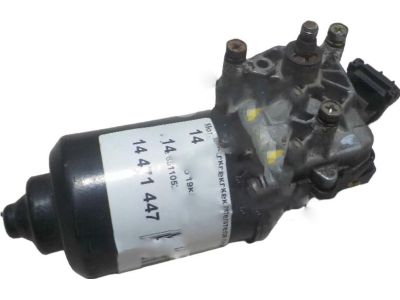

Toyota Echo Motor Assy, Windshield Wiper
Part Number: 85110-52130$161.72 MSRP: $229.90You Save: $68.18 (30%)Ships in 1-3 Business Days
Toyota Echo Wiper Motor
If you are in demand for superior quality and affordable OEM Toyota Echo Wiper Motor, then shop with us! We own a wide range of the reduced-priced genuine Toyota Echo Wiper Motor. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.
Toyota Echo Wiper Motor Parts Questions & Experts Answers
- Q: How to remove and refit the wiper motor and linkage on Toyota Echo?A: To remove the wiper motor and linkage, start by taking off the wiper arms and peeling off the rubber weatherstrip along the edge of the windscreen lower cover panel. Next, unclip and remove the central section of the cover panel, then unscrew and prise out the various screw and clip fasteners from the remaining cover panels before unclipping and removing them. Disconnect the wiring plug from the wiper motor, then remove the three bolts to lift out the wiper motor and linkage from below the windscreen. If access to another component is needed, no further dismantling is required. To separate the motor and linkage, remove the nut from the motor spindle, ensuring to recover the washer, and mark the motor spindle and mounting frame before removing the three screws to separate the wiper motor from the frame. For refitting, reverse the removal steps while ensuring the motor spindle is in the 'parked' position, aligning the previously made marks, then refit the washer and tighten the nut, secure all fasteners, and finally reattach the wiper arms.
