How do I remove the rear hub/bearing assembly on Toyota Sequoia?

Start by loosening wheel bolts, raising the vehicle, and removing the wheel. Remove rear coil spring, suspension air bags, brake caliper, bracket, and disc. Remove the rear wheel speed sensor, harness, grease cap, and driveaxle/hub nut. Disconnect the upper control arm and remove the hub/bearing assembly. Replace the O-ring on the hub. To install, lubricate the driveaxle splines, place the hub/bearing assembly onto the knuckle, and tighten bolts. Install the knuckle and a new driveaxle/hub nut. Tighten all fasteners, install the wheels, lower the vehicle, and tighten the driveaxle/hub bolt and lug nuts.

How do I remove the front hub/bearing assembly on Toyota Sequoia?

Remove the dust cover and loosening the drive axle/hub nut on 4WD models. Loosen wheel bolts, raise the vehicle, and remove the wheel. Remove the brake caliper, bracket, and disc, supporting the caliper with wire. Remove the hub/bearing assembly bolts and take out the assembly. Replace the O-ring on the hub. For bearing replacement, consult a professional. Ensure the mounting surfaces are smooth for installation. For 2WD models, install the assembly to the knuckle. For 4WD models, lubricate the drive axle splines and place the assembly onto the knuckle. Install a new drive axle/hub nut but don't tighten it yet. Install the brake disc, bracket, and caliper.

Genuine Toyota Sequoia Wheel Hub

Wheel Axle Hub

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Wheel Hubs found

View related parts

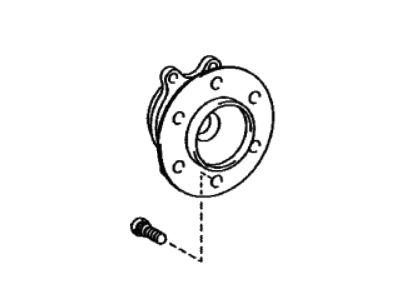

Toyota Sequoia Front Axle Hub Sub-Assembly, Left
Part Number: 43502-04040
$203.58 MSRP: $291.92
You Save: $88.34 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assy, Front Axle, Lh
- Position: Front Driver Side
- Replaced by: 43502-35170
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK45L-GKBLKA, UCK45L-GKBSKA, UCK45L-GKSLKA, UCK45L-GKSSKA
View related parts
Toyota Sequoia Front Axle Hub Sub-Assembly, Left
Part Number: 43502-0C010
$221.55 MSRP: $317.68
You Save: $96.13 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assy, Front Axle, Lh
- Position: Front Driver Side
- Replaced by: 43502-35110
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2001-2007 Toyota Sequoia | Limited, SR5 | 8 Cyl 4.7L | 2UZFE; 2UZFE; UCK35L-GKBLKA, UCK35L-GKBSKA, UCK35L-GKSLKA, UCK35L-GKSSKA
View related parts
Toyota Sequoia Front Axle Hub Sub-Assembly, Left
Part Number: 43502-0C031
$203.03 MSRP: $291.14
You Save: $88.11 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assy, Front Axle, Lh; Front Hub, Hub, Hub Assembly
- Position: Front Driver Side
- Replaces: 43502-34060
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFBE, 3URFE; 1URFE, 2UZFE, 3URFBE, 3URFE; UCK60L-GKALKA, 3URFE; UPK60L-GKTLKA, UCK60L-GKASKA, UCK65L-GKALKA, UCK65L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
View related parts
Toyota Sequoia Front Axle Hub Sub-Assembly, Left
Part Number: 43502-0C021
$203.03 MSRP: $291.14
You Save: $88.11 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assy, Front Axle, Lh; Front Hub, Hub Assembly
- Position: Front Driver Side
- Replaces: 43502-34050
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFE; 1URFE, 2UZFE, 3URFE; UCK60L-GKALKA, 3URFE; UPK60L-GKTLKA, UCK60L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA
View related parts

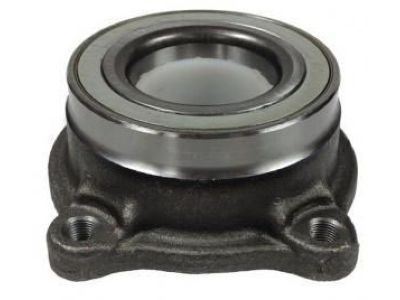

Toyota Sequoia Rear Axle Bearing And Hub Assembly, Left
Part Number: 42450-0C020
$391.42 MSRP: $576.18
You Save: $184.76 (33%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub & Bearing Assy, Rear Axle, Lh; Bearing
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2022 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 4.7L, 8 Cyl 5.7L | 1URFE, 2UZFE, 3URFBE, 3URFE; 1URFE, 2UZFE, 3URFBE, 3URFE; UCK60L-GKALKA, UCK60L-GKASKA, UCK65L-GKALKA, UCK65L-GKASKA, UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA
View related parts
Toyota Sequoia Front Axle Hub Sub-Assembly, Left
Part Number: 43502-34050
$203.03 MSRP: $291.14
You Save: $88.11 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assy, Front Axle, Lh
- Position: Front Driver Side
- Replaced by: 43502-0C021
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 5.7L | 1URFE, 3URFE; 1URFE, 3URFE; UPK60L-GKTLKA, UPK60L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA
View related parts
Toyota Sequoia Front Axle Hub Sub-Assembly, Left
Part Number: 43502-34060
$203.03 MSRP: $291.14
You Save: $88.11 (31%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Hub Sub-Assy, Front Axle, Lh
- Position: Front Driver Side
- Replaced by: 43502-0C031
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Sequoia | Limited, Platinum, SR5 | 8 Cyl 4.6L, 8 Cyl 5.7L | 1URFE, 3URFBE, 3URFE; 1URFE, 3URFBE, 3URFE; UPK60L-GKTLKA, UPK60L-GKTSKA, UPK65L-GKTLKA, UPK65L-GKTSKA, USK60L-GKTLKA, USK60L-GKTSKA, USK60L-GKTZKA, USK65L-GKTLGA, USK65L-GKTLKA, USK65L-GKTSGA, USK65L-GKTSKA, USK65L-GKTZGA, USK65L-GKTZKA

Toyota Sequoia Wheel Hub

The Wheel Hub of these Toyota Sequoia cars is an indispensable part of the car that joins the wheel to the car by containing several parts such as wheel bearing, sensor, rotor, and caliper. There are many types of hub and bearing assemblies and among them the most popular is unit assembly with the sensor of the ABS. While some front-wheel-drive cars must have steering knuckle disassembly for hub unit bearing replacement, non-driven axle have hubs coming with replaceable tapered roller bearings. It is essential to pay attention to wheel bearings regular check and cleaning since bearings that are worn loose or damaged may cause noise, vibration, and most unfavorably, wheel loss. Some of the considerations to make when fitting a wheel hub entails design, fit and the price with there being low-priced OE-grade wheel hub that is accessible in the market. The Wheel Hub Assembly (WHA) in Toyota Sequoia automobiles is quite significant in enabling wheel rotation and the firm fixing of wheel to the car; installation and efficient application of torque to WHA is crucial to avert mechanical breakdowns. The use of SKF Wheel hub bearings in millions of vehicles explains the importance of WHAs in maintaining safety and reliability in vehicles' operations.

If you are in demand for superior quality and affordable OEM Toyota Sequoia Wheel Hub, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sequoia Wheel Hub. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sequoia Wheel Hub Parts Questions & Experts Answers

Rear Axle Bearing And Hub Assembly, Left
42450-0C020
Q: How do I remove the rear hub/bearing assembly on Toyota Sequoia?
A: Start by loosening wheel bolts, raising the vehicle, and removing the wheel. Remove rear coil spring, suspension air bags, brake caliper, bracket, and disc. Remove the rear wheel speed sensor, harness, grease cap, and driveaxle/hub nut. Disconnect the upper Control Arm and remove the hub/bearing assembly. Replace the O-ring on the hub. To install, lubricate the driveaxle splines, place the hub/bearing assembly onto the knuckle, and tighten bolts. Install the knuckle and a new driveaxle/hub nut. Tighten all fasteners, install the wheels, lower the vehicle, and tighten the driveaxle/hub bolt and lug nuts.
Front Axle Hub Sub-Assembly, Left
43502-0C031
Q: How do I remove the front hub/bearing assembly on Toyota Sequoia?
A: Remove the dust cover and loosening the drive axle/hub nut on 4WD models. Loosen wheel bolts, raise the vehicle, and remove the wheel. Remove the brake caliper, bracket, and disc, supporting the caliper with wire. Remove the hub/bearing assembly bolts and take out the assembly. Replace the O-ring on the hub. For bearing replacement, consult a professional. Ensure the mounting surfaces are smooth for installation. For 2WD models, install the assembly to the knuckle. For 4WD models, lubricate the drive axle splines and place the assembly onto the knuckle. Install a new drive axle/hub nut but don't tighten it yet. Install the brake disc, bracket, and caliper.
