How do I remove and install the strut on my Toyota Sienna?

To remove the shock absorber, first, loosen the wheel lug nuts, raise the vehicle and support it securely on jack stands, and remove the wheel and cowl cover. Then, disconnect the stabilizer link and brake hose bracket from the shock absorber, and detach the ABS speed sensor wiring harness. Remove the shock absorber-to-knuckle nuts and separate the shock absorber from the steering knuckle. Support the shock absorber and spring assembly and remove the three shock absorber mount-to-shock-tower nuts. To inspect the shock absorber, check for leaking fluid, dents, cracks, and other damage, as well as chips or cracks in the Coil Springs and cuts or deterioration in the spring seat. To install the shock absorber, guide the assembly up into the fender, insert the three upper mounting studs through the holes in the shock tower, and install the nuts. Slide the steering knuckle into the shock absorber Hange and insert the two bolts, then reattach the brake hose bracket, speed sensor wiring harness bracket, and stabilizer link. Install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts and three upper mounting nuts to the proper torque specifications. Finally, check the front wheel alignment and adjust it if necessary.

How do I replace the rear shock absorbers on my Toyota Sienna?

To remove the rear shock absorbers, start by loosening the rear wheel lug nuts and raising the rear of the vehicle on jack stands. Remove the wheels and locate the access cover in the rear quarter panel trim inside the vehicle. Remove the shock absorber lower mounting bolt or nut, as well as the shock absorber upper mounting nut(s). Prepare the new shock absorber by placing the lower retainer and rubber insulator onto the top. Install the upper end of the shock absorber into its mounting hole and push the lower end onto its mounting stud. Tighten the lower mounting bolt or nut, followed by the upper retainers and insulators. Finally, install the access cover, and wheels, and lower the vehicle while tightening the lug nuts.

How do you disassemble the strut and spring assembly on a Toyota Sienna?

To disassemble the Shock Absorber and Coil Springs, begin by removing it from the vehicle and mounting it in a vise. Use a spring compressor to relieve pressure from the upper spring seat, ensuring it wiggles freely. Loosen the damper shaft nut and remove the nut and suspension support, inspecting the bearing for smooth operation and the rubber portion for any signs of damage. Take off the upper spring seat and insulator, then carefully lift the compressed spring and set it aside. Slide the rubber bumper off the damper shaft and check the lower insulator for wear. When reassembling, if replacing the lower insulator, position it with the dropped portion seated in the lowest part of the seat and install the rubber bumper. Carefully place the coil spring onto the lower insulator, aligning the flats on the spring seat with those on the damper shaft. Align the markings on the spring upper seat and upper insulator, ensuring the arrow on the spring seat faces the lower bracket. Install the dust seal and suspension support onto the damper shaft, tighten the nut to the specified torque, and remove the spring compressor tool. Finally, install the strut spring assembly back into the vehicle.

Genuine Toyota Sienna Shock Absorber

Suspension Shock Absorber

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

54 Shock Absorbers found

View related parts

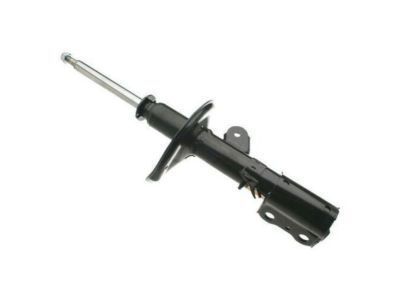

Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-A9890
$124.13 MSRP: $176.54
You Save: $52.41 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-08010
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL33L-SBTDKA
View related parts
Toyota Sienna Shock Absorber Assembly Rear Right
Part Number: 48531-A9050
$52.59 MSRP: $73.51
You Save: $20.92 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assembly, Shock, Rear Rh; Shock, Shock Absorber
- Manufacturer Note: MARK 48531-AE020
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK
View related parts
Toyota Sienna Shock Absorber Assembly Rear Right
Part Number: 48531-09850
$46.28 MSRP: $64.68
You Save: $18.40 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Rear Rh; Shock, Shock Absorber
- Manufacturer Note: MARK 48531-08010
- Position: Rear Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL33L-SBTDKA
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-8Z043
$109.49 MSRP: $154.52
You Save: $45.03 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-08050
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2017 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL33L-SBTDKA, GSL33L-SBZDHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-8Z155
$109.49 MSRP: $154.52
You Save: $45.03 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-08050
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2017 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL33L-SBTDKA, GSL33L-SBZDHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-A9160
$142.14 MSRP: $202.92
You Save: $60.78 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-AE020
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK
View related parts
Toyota Sienna Shock Absorber Assembly Rear Left
Part Number: 48531-09A80
$38.78 MSRP: $54.20
You Save: $15.42 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Rear Lh; Shock, Shock Absorber
- Manufacturer Note: MARK 48531-08050
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2017 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL33L-SBTDKA, GSL33L-SBZDHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-8Z156
$128.22 MSRP: $182.98
You Save: $54.76 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-08060
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2017 Toyota Sienna | LE, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-A9690
$118.16 MSRP: $168.96
You Save: $50.80 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-AE021
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK
View related parts
Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-09Z90
$124.13 MSRP: $176.54
You Save: $52.41 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-08020
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-09S80
$124.13 MSRP: $176.54
You Save: $52.41 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-08020
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA
View related parts
Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-A9240
$135.71 MSRP: $193.74
You Save: $58.03 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-AE020
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2007 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-A9380
$118.16 MSRP: $168.96
You Save: $50.80 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-AE021
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK
View related parts
Toyota Sienna Shock Absorber Assembly Rear Left
Part Number: 48531-09A90
$38.78 MSRP: $54.20
You Save: $15.42 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Rear Lh; Shock, Shock Absorber
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2020 Toyota Sienna | LE, SE, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Shock Absorber Assembly Rear Left
Part Number: 48531-09B00
$38.78 MSRP: $54.20
You Save: $15.42 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Rear Lh; Shock, Shock Absorber
- Manufacturer Note: MARK 48531-08070
- Position: Rear Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2017 Toyota Sienna | SE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PRTSKA, GSL30L-PRZSHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-09S70
$124.13 MSRP: $176.54
You Save: $52.41 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-08010
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2015 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL33L-SBTDKA
View related parts
Toyota Sienna ABSORBER Assembly Set, S
Part Number: 48510-8Z472
$126.58 MSRP: $179.96
You Save: $53.38 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Strut
- Manufacturer Note: MARK 48510-08110
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Right
Part Number: 48510-8Z293
$123.77 MSRP: $176.19
You Save: $52.42 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-08080
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2020 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-8Z151
$123.77 MSRP: $176.19
You Save: $52.42 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-08080
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2016-2020 Toyota Sienna | LE, STD, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA
View related parts
Toyota Sienna Shock Absorber Assembly Front Left
Part Number: 48520-8Z044
$124.01 MSRP: $176.97
You Save: $52.96 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Set, Shock ; Absorber Assembly, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-08060
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2014-2017 Toyota Sienna | LE, XLE | 6 Cyl 3.5L | 2GRFE, 2GRFKS; 2GRFE, 2GRFKS; GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA

| Page 1 of 3 |Next >

1-20 of 54 Results

Toyota Sienna Shock Absorber

This Shock Absorber is particularly found in Toyota Sienna and its main function is to minimize the vibration and to bear part of the weight of the vehicle. Shock Absorbers change kinetic energy to heat, thus providing better ride comfort and vehicle stability while, at the same time, they control excessive suspension motion in cooperation with springs. Besides, there has been various designs of Shock Absorbers utilized on Sienna vehicles for instance; twin-tube and mono-tube designs that provides differentiated arrangements of hydrodynamic fluid and the manner in which they can be regulated towards improved performance at certain conditions. The Shock Absorber also has other enhanced designs such as Position Sensitive Damping (PSD) and Acceleration Sensitive Damping (ASD) that fine tune the unit's characters for specific driving situation for the optimal performance. The Shock Absorber maintenance should be carried out often and the Shock Absorber should be replaced as soon as possible so that the suspension system of Toyota Sienna can be long-lasting and effective.

If you are in demand for superior quality and affordable OEM Toyota Sienna Shock Absorber, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Shock Absorber. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Shock Absorber Parts Questions & Experts Answers

Shock Absorber Assembly Rear Left
48531-A9060
Q: How do I remove and install the strut on my Toyota Sienna?
A: To remove the shock absorber, first, loosen the wheel lug nuts, raise the vehicle and support it securely on jack stands, and remove the wheel and cowl cover. Then, disconnect the stabilizer link and brake hose bracket from the shock absorber, and detach the ABS speed sensor wiring harness. Remove the shock absorber-to-knuckle nuts and separate the shock absorber from the Steering Knuckle. Support the shock absorber and spring assembly and remove the three shock absorber mount-to-shock-tower nuts. To inspect the shock absorber, check for leaking fluid, dents, cracks, and other damage, as well as chips or cracks in the Coil Springs and cuts or deterioration in the spring seat. To install the shock absorber, guide the assembly up into the fender, insert the three upper mounting studs through the holes in the shock tower, and install the nuts. Slide the steering knuckle into the shock absorber Hange and insert the two bolts, then reattach the brake hose bracket, speed sensor wiring harness bracket, and stabilizer link. Install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts and three upper mounting nuts to the proper torque specifications. Finally, check the front wheel alignment and adjust it if necessary.
Shock Absorber Assembly Rear Right
48531-A9014
Q: How do I replace the rear shock absorbers on my Toyota Sienna?
A: To remove the rear shock absorbers, start by loosening the rear wheel lug nuts and raising the rear of the vehicle on jack stands. Remove the wheels and locate the access cover in the rear quarter panel trim inside the vehicle. Remove the shock absorber lower mounting bolt or nut, as well as the shock absorber upper mounting nut(s). Prepare the new shock absorber by placing the lower retainer and rubber insulator onto the top. Install the upper end of the shock absorber into its mounting hole and push the lower end onto its mounting stud. Tighten the lower mounting bolt or nut, followed by the upper retainers and insulators. Finally, install the access cover, and wheels, and lower the vehicle while tightening the lug nuts.
Shock Absorber Assembly Rear Left
48531-A9200
Q: How do you disassemble the strut and spring assembly on a Toyota Sienna?
A: To disassemble the Shock Absorber and Coil Springs, begin by removing it from the vehicle and mounting it in a vise. Use a spring compressor to relieve pressure from the upper spring seat, ensuring it wiggles freely. Loosen the damper shaft nut and remove the nut and suspension support, inspecting the bearing for smooth operation and the rubber portion for any signs of damage. Take off the upper spring seat and insulator, then carefully lift the compressed spring and set it aside. Slide the rubber bumper off the damper shaft and check the lower insulator for wear. When reassembling, if replacing the lower insulator, position it with the dropped portion seated in the lowest part of the seat and install the rubber bumper. Carefully place the coil spring onto the lower insulator, aligning the flats on the spring seat with those on the damper shaft. Align the markings on the spring upper seat and upper insulator, ensuring the arrow on the spring seat faces the lower bracket. Install the dust seal and suspension support onto the damper shaft, tighten the nut to the specified torque, and remove the spring compressor tool. Finally, install the strut spring assembly back into the vehicle.
