How do you remove and install a tie-rod end on a Toyota Sienna?

To remove the Tie Rod End, start by loosening the wheel lug nuts. Next, raise the front of the vehicle and support it securely on jackstands. Make sure that the rear wheels are blocked and the parking brake is set. Take off the front wheel and hold the tie-rod end with locking pliers or a wrench and loosen the jam nut enough to mark the position of the tie-rod end about the threads. Remove the cotter pin and loosen the nut on the tie-rod end stud, using a puller to disconnect the tie-rod from the steering knuckle arm and separate the tie-rod by removing the nut. Unscrew the tie-rod end. For installation, thread the tie-rod end onto the marked position and insert the tie-rod end stud into the steering knuckle arm and tighten the jam nut securely. Install the castle nut on the stud and tighten it to the specified torque and install a new cotter pin. Tighten the nut more to align it if you find it necessary. However, do not loosen a nut to align it. Install the wheel and lug nuts. Lower the vehicle and tighten the lug nuts to the specified torque. Finally, get the front wheel alignment checked.

Genuine Toyota Sienna Tie Rod End

Steering Rod End

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Tie Rod Ends found

View related parts
Toyota Sienna Rod Assy, Tie, RH
Part Number: 45460-09040
$90.49 MSRP: $127.57
You Save: $37.08 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Rod Set, Tie, RH
Part Number: 45460-09210
$83.06 MSRP: $117.08
You Save: $34.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assy, Tie, RH; Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Rod Assy, Tie, LH
Part Number: 45470-09030
$90.49 MSRP: $127.57
You Save: $37.08 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Rod Set, Tie, Lh
Part Number: 45470-09130
$83.06 MSRP: $117.08
You Save: $34.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rod Assy, Tie, LH; Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2020 Toyota Sienna | LE, SE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE, 2GRFKS; 1ARFE, 2GRFE, 2GRFKS; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL30L-PFTDKA, GSL30L-PFTEKA, GSL30L-PFTQKA, GSL30L-PFZDHA, GSL30L-PFZEHA, GSL30L-PFZQHA, GSL30L-PRTEKA, GSL30L-PRTQKA, GSL30L-PRTSKA, GSL30L-PRZEHA, GSL30L-PRZQHA, GSL30L-PRZSHA, GSL33L-SBTDKA, GSL33L-SBZDHA, GSL33L-SEZDHA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA, GSL35L-PFZEHA, GSL35L-PFZQHA, GSL35L-PFZSHA
View related parts
Toyota Sienna Tie Rod End Sub-Assembly, Left
Part Number: 45046-09020
$54.37 MSRP: $75.99
You Save: $21.62 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: End Sub-Assembly, Tie Rod, Lh
- Manufacturer Note: (L)
- Position: Driver Side
- Replaced by: 45046-29255
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2003 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts

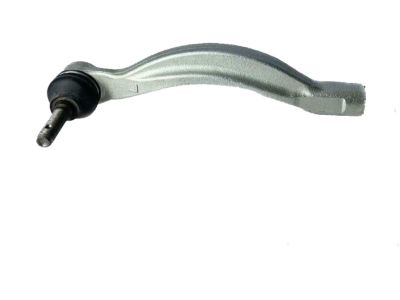

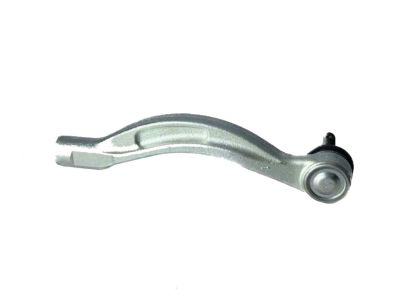

Toyota Sienna End Set, Tie Rod LH
Part Number: 45470-09230
$82.71 MSRP: $116.59
You Save: $33.88 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts

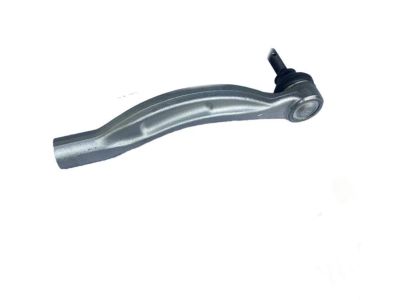

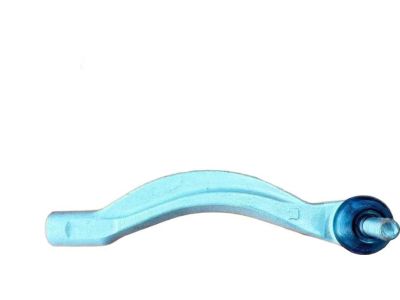

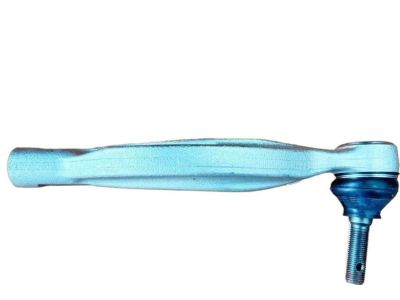

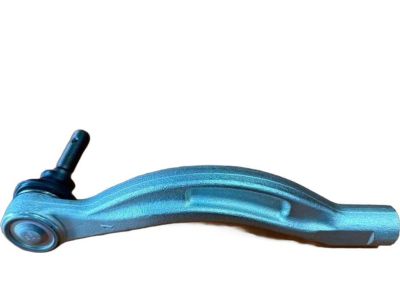

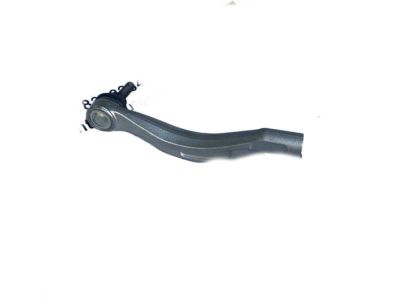

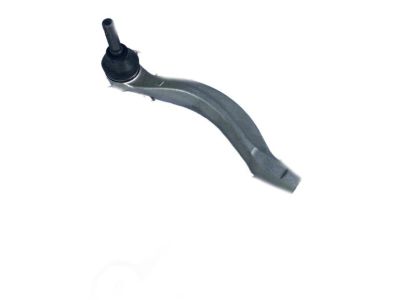

Toyota Sienna End Set, Tie Rod RH
Part Number: 45460-09400
$82.71 MSRP: $116.59
You Save: $33.88 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Outer Tie Rod
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH40L-PNXLHA, AXLH40L-PNXSHA, AXLH40L-PNXXHA, AXLH40L-PPXEHA, AXLH40L-PPXXHA, AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA

Toyota Sienna Tie Rod End

The Tie Rod End is incorporated in the Toyota Sienna vehicles' steering system whereby it connects the steering rack to the steering knuckles. It is in this connection that the vehicle stability is maintained and direction is controlled effectively. The assembly consists of two components: inner tie rod end which is explained as the part of the steering mechanism that connects the steering wheel to the outer tie rod end that is explained as the part of the steering mechanism that connects the steering mechanism to the wheels. Different types of the Tie Rod Ends may have been used in the Sienna models in the course of the years, but there is no detail of the different types used. Its main role remains the same for all listed types: to guarantee reliable steering and handling characteristics of vehicles. This Treasure is crucial in the working of the Toyota Sienna's steering system especially when it comes to safe driving hence the importance of the Tie Rod End.

If you are in demand for superior quality and affordable OEM Toyota Sienna Tie Rod End, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Tie Rod End. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Tie Rod End Parts Questions & Experts Answers

Tie Rod End Sub-Assembly, Left
45046-09020
Q: How do you remove and install a tie-rod end on a Toyota Sienna?
A: To remove the Tie Rod End, start by loosening the wheel lug nuts. Next, raise the front of the vehicle and support it securely on jackstands. Make sure that the rear wheels are blocked and the parking brake is set. Take off the front wheel and hold the tie-rod end with locking pliers or a wrench and loosen the jam nut enough to mark the position of the tie-rod end about the threads. Remove the cotter pin and loosen the nut on the tie-rod end stud, using a puller to disconnect the tie-rod from the steering knuckle arm and separate the tie-rod by removing the nut. Unscrew the tie-rod end. For installation, thread the tie-rod end onto the marked position and insert the tie-rod end stud into the steering knuckle arm and tighten the jam nut securely. Install the castle nut on the stud and tighten it to the specified torque and install a new cotter pin. Tighten the nut more to align it if you find it necessary. However, do not loosen a nut to align it. Install the wheel and lug nuts. Lower the vehicle and tighten the lug nuts to the specified torque. Finally, get the front wheel alignment checked.
