How to replace drive axle oil seals on Toyota Sienna?

Fluid leaks frequently occur due to wear of the drive axle oil seals or speed sensor O-rings, with replacement being relatively easy as repairs can usually be performed without removing the transaxle from the vehicle. The drive axle oil seals are located on each side of the transaxle, where the drive axle shaft is splined into the differential. If leakage at the seal is suspected, raise the vehicle and support it securely on jack stands; fluid will be found on the side of the transaxle if the seal is leaking. Remove the drive axle assembly, and if replacing the right side drive axle seal, remove the intermediate shaft and the drive axle assembly as a single unit. Carefully pry the oil seal out of the transaxle bore using a screwdriver or pry bar, ensuring not to gouge or nick the surface of the seal bore. If the oil seal cannot be removed with these tools, a special oil seal removal tool will be required. To install the new oil seal, use a large section of pipe or a large deep socket as a drift, driving it into the bore squarely and ensuring it is completely seated, while lubricating the lip of the new seal with multi-purpose grease. After installation, be careful not to damage the lip of the new seal when reinstalling the drive axle assembly. The direct clutch speed sensor seal for 2001 through 2003 models is located on the transaxle housing; check for lubricant around the sensor housing to determine if the O-ring is leaking. Disconnect the electrical connector from the direct clutch speed sensor and remove the sensor from the transaxle, then remove the O-ring. Finally, install a new O-ring on the sensor body and reinstall the direct clutch speed sensor, tightening the hold-down bolt securely.

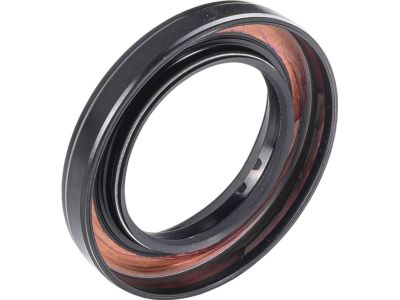

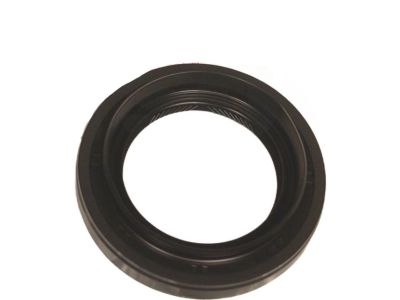

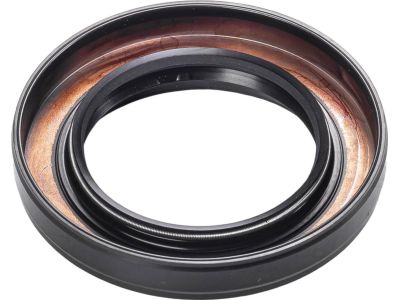

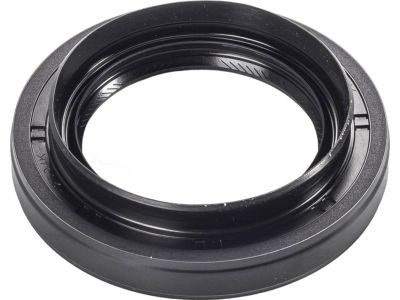

Genuine Toyota Sienna Wheel Seal

Wheel Axle Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

7 Wheel Seals found

View related parts
Toyota Sienna Seal, Type T Oil
Part Number: 90311-50045
$14.58 MSRP: $20.37
You Save: $5.79 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Oil Seal, Front Drive Shaft, LH; Axle Seal
- Comment: (FOR HYBRID VEHICLE TRANSAXLE ASSY)
- Position: Driver Side
- Replaced by: 90311-50064
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2016 Toyota Sienna | LE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE; 1ARFE, 2GRFE; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA
View related parts
Toyota Sienna Seal, Type T Oil
Part Number: 90311-50031
$21.91 MSRP: $30.63
You Save: $8.72 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Differential Side Bearing Retainer)
- Comment: (FOR HYBRID VEHICLE TRANSAXLE ASSY)
- Position: Driver Side
- Replaced by: 90311-50063
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2010 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.3L, 6 Cyl 3.5L | 2GRFE, 3MZFE; 2GRFE, 3MZFE; GSL20L-PFADKK, GSL20L-PFAEKA, GSL20L-PFAEKK, GSL20L-PFAQKA, GSL20L-PFAQKK, GSL20L-PRADKK, GSL20L-PRAEKA, GSL20L-PRAEKK, GSL20L-PRAQKA, GSL20L-PRAQKK, GSL23L-SBADKA, GSL23L-SBADKK, GSL25L-PFADKK, GSL25L-PFAEKA, GSL25L-PFAEKK, GSL25L-PFAQKA, GSL25L-PFAQKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Seal, Type T Oil
Part Number: 90311-50033
$14.58 MSRP: $20.37
You Save: $5.79 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil, NO.2(For Transaxle Case)
- Comment: (FOR HYBRID VEHICLE TRANSAXLE ASSY)
- Position: Driver Side
- Replaced by: 90311-50064
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2011-2012 Toyota Sienna | LE, STD, XLE | 4 Cyl 2.7L, 6 Cyl 3.5L | 1ARFE, 2GRFE; 1ARFE, 2GRFE; ASL30L-PFTEKA, ASL30L-PRTEKA, GSL35L-PFTDKA, GSL35L-PFTEKA, GSL35L-PFTQKA
View related parts
Toyota Sienna Seal, Oil
Part Number: 90311-50029
$24.28 MSRP: $33.93
You Save: $9.65 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Differential Side Bearing Retainer); Seal
- Comment: (FOR DIFFERENTIAL SIDE BEARING RETAINER)
- Position: Driver Side
- Replaces: 90311-50011
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2005 Toyota Sienna | CE, LE, XLE | 6 Cyl 3.0L, 6 Cyl 3.3L | 1MZFE, 3MZFE; 1MZFE, 1MZFE; MCL10L-GFSDKA, 3MZFE; MCL10L-PFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK, MCL20L-PFADKK, MCL20L-PFAEKA, MCL20L-PFAEKK, MCL20L-PFAQKA, MCL20L-PFAQKK, MCL20L-PRADKK, MCL20L-PRAEKA, MCL20L-PRAEKK, MCL20L-PRAQKA, MCL20L-PRAQKK, MCL23L-SBADKA, MCL23L-SBADKK, MCL25L-PFAEKA, MCL25L-PFAEKK, MCL25L-PFAQKA, MCL25L-PFAQKK
View related parts
Toyota Sienna Seal, Oil
Part Number: 90311-50011
$24.28 MSRP: $33.93
You Save: $9.65 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Differential Side Bearing Retainer)
- Comment: (FOR DIFFERENTIAL SIDE BEARING RETAINER)
- Position: Driver Side
- Replaced by: 90311-50029
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2001 Toyota Sienna | CE, LE | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCL10L-GFSDKA, MCL10L-GFSDKK, MCL10L-GFSGKA, MCL10L-GFSGKK, MCL10L-PFSDKA, MCL10L-PFSDKK, MCL10L-PFSGKA, MCL10L-PFSGKK, MCL10L-SESDKA, MCL10L-SESDKK
View related parts
Toyota Sienna Seal, Type T Oil
Part Number: 90311-42058
$13.23 MSRP: $18.50
You Save: $5.27 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Axle Seal, Oil Seal
- Position: Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA
View related parts
Toyota Sienna Seal, Type T Oil
Part Number: 90311-42057
$15.35 MSRP: $21.46
You Save: $6.11 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Axle Seal, Oil Seal
- Position: Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2021-2022 Toyota Sienna | 4 Cyl 2.5L | A25AFXS; A25AFXS; AXLH45L-PNXLHA, AXLH45L-PNXSHA, AXLH45L-PNXXHA, AXLH45L-PPXEHA

Toyota Sienna Wheel Seal

If you are in demand for superior quality and affordable OEM Toyota Sienna Wheel Seal, then shop with us! We own a wide range of the reduced-priced genuine Toyota Sienna Wheel Seal. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Sienna Wheel Seal Parts Questions & Experts Answers

Seal, Oil
90311-50029
Q: How to replace drive axle oil seals on Toyota Sienna?
A: Fluid leaks frequently occur due to wear of the drive axle oil seals or speed sensor O-rings, with replacement being relatively easy as repairs can usually be performed without removing the transaxle from the vehicle. The drive axle oil seals are located on each side of the transaxle, where the drive axle shaft is splined into the differential. If leakage at the seal is suspected, raise the vehicle and support it securely on jack stands; fluid will be found on the side of the transaxle if the seal is leaking. Remove the drive axle assembly, and if replacing the right side drive axle seal, remove the intermediate shaft and the drive axle assembly as a single unit. Carefully pry the oil seal out of the transaxle bore using a screwdriver or pry bar, ensuring not to gouge or nick the surface of the seal bore. If the oil seal cannot be removed with these tools, a special oil seal removal tool will be required. To install the new oil seal, use a large section of pipe or a large deep socket as a drift, driving it into the bore squarely and ensuring it is completely seated, while lubricating the lip of the new seal with multi-purpose grease. After installation, be careful not to damage the lip of the new seal when reinstalling the drive axle assembly. The direct clutch speed sensor seal for 2001 through 2003 models is located on the transaxle housing; check for lubricant around the sensor housing to determine if the O-ring is leaking. Disconnect the electrical connector from the direct clutch speed sensor and remove the sensor from the transaxle, then remove the O-ring. Finally, install a new O-ring on the sensor body and reinstall the direct clutch speed sensor, tightening the hold-down bolt securely.
