41 Shock Absorbers found

View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-A9050
$152.32 MSRP: $217.42
You Save: $65.10 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH
- Manufacturer Note: MARK 48530-AA030
- Position: Rear Passenger Side
- Replaced by: 48530-80142
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Solara | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L | 1MZFE, 2AZFE, 5SFE; 1MZFE, 2AZFE, 5SFE; ACV20L-GCMNKA, ACV20L-GCPNKA, ACV20L-GCPNKK, ACV20L-GKPNKA, MCV20L-GCMNKA, MCV20L-GCMNKK, MCV20L-GCPNKA, MCV20L-GCPNKK, MCV20L-GKPNKA, MCV20L-GKPNKK, SXV20L-GCMNKA, SXV20L-GCPNKA, SXV20L-GCPNKK, SXV20L-GKPNKA
View related parts
Toyota Solara Shock Absorber Assembly Front Right
Part Number: 48510-A9350
$128.22 MSRP: $182.35
You Save: $54.13 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-AA080
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Front Right
Part Number: 48510-09Q40
$108.78 MSRP: $154.00
You Save: $45.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-06600
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Shock Absorber Assembly Front Left
Part Number: 48520-09J90
$108.78 MSRP: $154.00
You Save: $45.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-06600
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-A9050
$152.32 MSRP: $217.42
You Save: $65.10 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH
- Manufacturer Note: MARK 48540-AA030
- Position: Rear Driver Side
- Replaced by: 48540-39565
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1999-2003 Toyota Solara | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L | 1MZFE, 2AZFE, 5SFE; 1MZFE, 2AZFE, 5SFE; ACV20L-GCMNKA, ACV20L-GCPNKA, ACV20L-GCPNKK, ACV20L-GKPNKA, MCV20L-GCMNKA, MCV20L-GCMNKK, MCV20L-GCPNKA, MCV20L-GCPNKK, MCV20L-GKPNKA, MCV20L-GKPNKK, SXV20L-GCMNKA, SXV20L-GCPNKA, SXV20L-GCPNKK, SXV20L-GKPNKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-09P30
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH; Strut
- Manufacturer Note: MARK 48530-06481
- Position: Rear Passenger Side
- Replaces: 48530-09M40
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Shock Absorber Assembly Front Right
Part Number: 48510-A9730
$108.78 MSRP: $154.00
You Save: $45.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Rh; Strut
- Manufacturer Note: MARK 48510-AA081
- Position: Front Passenger Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Front Left
Part Number: 48520-A9410
$108.78 MSRP: $154.00
You Save: $45.22 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Lh; Strut
- Manufacturer Note: MARK 48520-AA081
- Position: Front Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-A9660
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH; Strut
- Manufacturer Note: MARK 48530-AA083
- Position: Rear Passenger Side
- Replaces: 48530-A9620
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-A9300
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH
- Manufacturer Note: MARK 48540-AA082
- Position: Rear Driver Side
- Replaced by: 48540-A9340
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-A9340
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH; Strut
- Manufacturer Note: MARK 48540-AA083
- Position: Rear Driver Side
- Replaces: 48540-A9300
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Front Left
Part Number: 48520-A9210
$127.40 MSRP: $181.18
You Save: $53.78 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Absorber Assy, Shock, Front Lh
- Manufacturer Note: MARK 48520-AA080
- Position: Front Driver Side
- Replaced by: 48520-A9400
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2004-2006 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, ACV30L-GCPGKA, ACV30L-GCPNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-09M40
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH
- Manufacturer Note: MARK 48530-06480
- Position: Rear Passenger Side
- Replaced by: 48530-09P30
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-A9620
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH
- Manufacturer Note: MARK 48530-AA082
- Position: Rear Passenger Side
- Replaced by: 48530-A9660
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCAGKA, ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCAGKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-A9630
$121.79 MSRP: $173.81
You Save: $52.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH
- Position: Rear Passenger Side
- Replaced by: 48530-A9670
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Right
Part Number: 48530-A9670
$121.79 MSRP: $173.81
You Save: $52.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear RH; Strut
- Manufacturer Note: MARK 48530-AA093,SPORT PACKAGE(HID HEAD LAMP)
- Position: Rear Passenger Side
- Replaces: 48530-A9630
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-09780
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH
- Manufacturer Note: MARK 48540-06480
- Position: Rear Driver Side
- Replaced by: 48540-09840
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-09840
$125.53 MSRP: $179.15
You Save: $53.62 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH; Strut
- Manufacturer Note: MARK 48540-06481
- Position: Rear Driver Side
- Replaces: 48540-09780
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE, SLE | 6 Cyl 3.3L | 3MZFE; 3MZFE; MCV31L-GKAGKA, MCV31L-GKANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-A9310
$121.79 MSRP: $173.81
You Save: $52.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH
- Position: Rear Driver Side
- Replaced by: 48540-A9350
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCANKA
View related parts
Toyota Solara Shock Absorber Assembly Rear Left
Part Number: 48540-A9350
$121.79 MSRP: $173.81
You Save: $52.02 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: ABSORBER Assembly, Shock, Rear LH; Strut
- Manufacturer Note: MARK 48540-AA093,SPORT PACKAGE(HID HEAD LAMP)
- Position: Rear Driver Side
- Replaces: 48540-A9310
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2005-2008 Toyota Solara | SE | 4 Cyl 2.4L, 6 Cyl 3.3L | 2AZFE, 3MZFE; 2AZFE, 3MZFE; ACV30L-GCANKA, ACV30L-GCMNKA, MCV31L-GCANKA

| Page 1 of 3 |Next >

1-20 of 41 Results

Toyota Solara Shock Absorber

If you are in demand for superior quality and affordable OEM Toyota Solara Shock Absorber, then shop with us! We own a wide range of the reduced-priced genuine Toyota Solara Shock Absorber. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Solara Shock Absorber Parts Questions & Experts Answers

Shock Absorber Assembly Front Right
48510-A9350

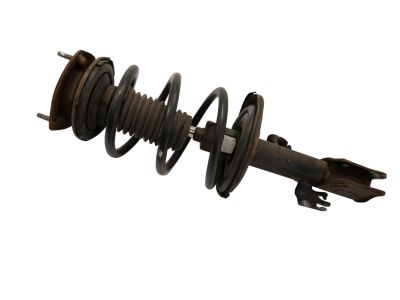

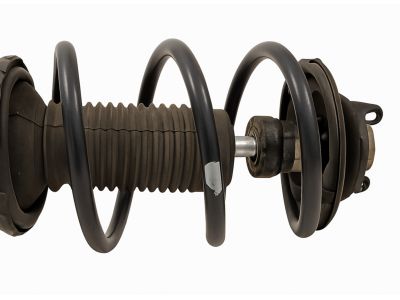

Q: How to disassemble and reassemble a strut and spring assembly on 2002 through 2008 Toyota Solara?
A: If the struts or coil springs show signs of wear such as leaking fluid, loss of damping capability, or physical damage, explore all options before starting any work, as strut/shock absorber assemblies are not serviceable and must be replaced if issues arise. Strut assemblies with springs may be available on an exchange basis, which can save time and effort, so check the cost and availability of parts before disassembling the vehicle. To disassemble, remove the strut and spring assembly, mount it in a vise lined with wood or rags to prevent damage, and avoid excessive tightening. Install a spring compressor according to the manufacturer's instructions to relieve pressure from the upper spring seat, which can be verified by wiggling the spring. Loosen the damper shaft nut, then remove the nut and suspension support, inspecting the bearing for smooth operation and checking the rubber for deterioration. Remove the upper spring seat and insulator from the damper shaft, checking the spring seat for damage. Carefully lift the compressed spring from the assembly, ensuring safety by keeping the ends pointed away from the body, and slide off the rubber bumper. Inspect the lower insulator for wear and replace it if necessary. For reassembly, if replacing the lower insulator, position it correctly and extend the damper rod to install the rubber bumper. Place the coil spring onto the lower insulator, ensuring proper fit, then install the upper insulator and spring seat, aligning the flats on the damper shaft with those in the spring seat. Align the OUT mark of the upper spring seat with the upper insulator mark, ensuring the arrow on the spring seat faces the lower bracket for front struts. Install the dust seal and suspension support to the damper shaft, then install the nut, tightening it to the specified torque if applicable. Finally, install the strut/spring assembly, tightening the damper shaft nut to the required torque for models with electronic modulated suspension.

Related Toyota Solara Parts

Browse by Year

2008 Shock Absorber 2007 Shock Absorber 2006 Shock Absorber 2005 Shock Absorber 2004 Shock Absorber 2003 Shock Absorber 2002 Shock Absorber 2001 Shock Absorber 2000 Shock Absorber 1999 Shock Absorber
