How to remove and refit the wiper motor and linkage on Toyota Yaris?

To remove the wiper motor and linkage, start by taking off the wiper arms and peeling off the rubber weatherstrip along the edge of the windscreen lower cover panel. Next, unclip and remove the central section of the cover panel, then unscrew and prise out the various screw and clip fasteners from the remaining cover panels before unclipping and removing them. Disconnect the wiring plug from the wiper motor, then remove the three bolts to lift out the wiper motor and linkage from below the windscreen. If access to another component is needed, no further dismantling is required. To separate the motor and linkage, remove the nut from the motor spindle, ensuring to recover the washer, and mark the motor spindle and mounting frame before removing the three screws to separate the wiper motor from the frame. For refitting, reverse the removal steps while ensuring the motor spindle is in the 'parked' position, aligning the previously made marks, then refit the washer and tighten the nut, secure all fasteners, and finally reattach the wiper arms.

Genuine Toyota Yaris Wiper Motor

Windshield Wiper Motor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

13 Wiper Motors found

View related parts

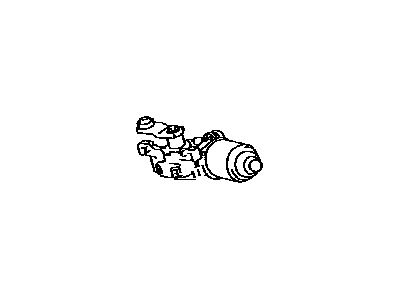

Toyota Yaris Motor Assy, Windshield Wiper
Part Number: 85110-52510
$198.82 MSRP: $285.10
You Save: $86.28 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Replaces: 85110-52310
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2011 Toyota Yaris | RS, STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP91L-AGMRKA, NCP91L-AGMRKK, NCP91L-AGMVKK, NCP91L-AGPRKA, NCP91L-AGPRKK, NCP91L-AGPVKK, NCP91L-AHMRKA, NCP91L-AHMRKK, NCP91L-AHMVKK, NCP91L-AHPRKA, NCP91L-AHPRKK, NCP91L-AHPVKK
View related parts
Toyota Yaris Motor Assy, Windshield Wiper
Part Number: 85110-52310
$198.82 MSRP: $285.10
You Save: $86.28 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Replaced by: 85110-52510
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2008 Toyota Yaris | RS, STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP91L-AGMRKA, NCP91L-AGMRKK, NCP91L-AGMVKK, NCP91L-AGPRKA, NCP91L-AGPRKK, NCP91L-AGPVKK, NCP91L-AHMRKK, NCP91L-AHMVKK, NCP91L-AHPRKK, NCP91L-AHPVKK
View related parts
Toyota Yaris Motor Assembly, Rear WIPER
Part Number: 85130-52230
$126.31 MSRP: $179.57
You Save: $53.26 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Rear Wiper; Rear Motor, Wiper Motor
- Manufacturer Note: REAR WINDOW WIPER-WITHOUT
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2014 Toyota Yaris | STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP131L-AGMRKA, NCP131L-AGMRKK, NCP131L-AGPRKA, NCP131L-AGPRKK, NCP131L-AHMRKA, NCP131L-AHMRKK, NCP131L-AHPRKA, NCP131L-AHPRKK
View related parts
Toyota Yaris Motor Assembly, Rr WIPER
Part Number: 85130-WB001
$256.19 MSRP: $367.34
You Save: $111.15 (31%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2020 Toyota Yaris | Base, Entry, High | P5 | P5; P5; DADW-NAA, DADW-NAB, DADW-NAC, DAEA-NAA, DAEA-NAB, DAEA-NAC, DAEA-NAD, DAEA-NAE, DAEB-NAC, DAEC-NAC, DAEC-NAD, DAEC-NAE, DAEC-NAF, DAED-NAA, DAEE-NAA, DAEE-NAB, DDF4-NAA, DDF4-NAB, DDF4-NAC, DDF4-NAD, DDF5-NAA, DDF5-NAB, DDF5-NAC, DDF5-NAD, DDF5-NAE, DDF5-NAF, DDF5-NAG, DDF8-NAA, DDF9-NAA, DDF9-NAB
View related parts
Toyota Yaris Motor Assembly Rr WIPER
Part Number: 85130-0D180
$130.58 MSRP: $185.65
You Save: $55.07 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 85130-52270
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2017-2018 Toyota Yaris | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP131L-CGMRKA, NCP131L-CGMRKK, NCP131L-CGPRKA, NCP131L-CGPRKK, NCP131L-CHMRKA, NCP131L-CHMRKK, NCP131L-CHPRKA, NCP131L-CHPRKK
View related parts
Toyota Yaris Motor Assy, Rear Wiper
Part Number: 85130-52110
$135.32 MSRP: $192.38
You Save: $57.06 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2006-2009 Toyota Yaris | RS, STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP91L-AGMRKA, NCP91L-AGMRKK, NCP91L-AGMVKK, NCP91L-AGPRKA, NCP91L-AGPRKK, NCP91L-AGPVKK, NCP91L-AHMRKK, NCP91L-AHMVKK, NCP91L-AHPRKK, NCP91L-AHPVKK
View related parts
Toyota Yaris Motor Assembly, Front WIPER
Part Number: 85110-0D190
$138.83 MSRP: $197.38
You Save: $58.55 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper
- Position: Front
- Replaced by: 85110-0D191
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2016 Toyota Yaris | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP131L-CGMRKA, NCP131L-CGMRKK, NCP131L-CGMSKK, NCP131L-CGPRKA, NCP131L-CGPRKK, NCP131L-CGPSKK, NCP131L-CHMRKA, NCP131L-CHMRKK, NCP131L-CHMSKK, NCP131L-CHPRKA, NCP131L-CHPRKK, NCP131L-CHPSKK
View related parts
Toyota Yaris Motor Assembly, Front WIPER
Part Number: 85110-52620
$138.83 MSRP: $197.38
You Save: $58.55 (30%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Motor Assy, Windshield Wiper
- Position: Front
- Replaced by: 85110-0D191
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2014 Toyota Yaris | RS, STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP131L-AGMRKA, NCP131L-AGMRKK, NCP131L-AGMVKK, NCP131L-AGPRKA, NCP131L-AGPRKK, NCP131L-AGPVKK, NCP131L-AHMRKA, NCP131L-AHMRKK, NCP131L-AHMVKK, NCP131L-AHPRKA, NCP131L-AHPRKK, NCP131L-AHPVKK
View related parts
Toyota Yaris Motor Assy, Windshield Wiper
Part Number: 85110-52440
$161.00 MSRP: $228.90
You Save: $67.90 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Front Motor, Wiper Motor
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2016 Toyota Yaris | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP93L-BEMRKA, NCP93L-BEMRKK, NCP93L-BEPRKA, NCP93L-BEPRKK
View related parts
Toyota Yaris Motor Assy, Rear Wiper
Part Number: 85130-52170
$167.77 MSRP: $238.50
You Save: $70.73 (30%)
Product Specifications
- Other Name: Rear Motor, Wiper Motor
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2008-2011 Toyota Yaris | RS, STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP91L-AGMRKA, NCP91L-AGMRKK, NCP91L-AGMVKK, NCP91L-AGPRKA, NCP91L-AGPRKK, NCP91L-AGPVKK, NCP91L-AHMRKA, NCP91L-AHMRKK, NCP91L-AHMVKK, NCP91L-AHPRKA, NCP91L-AHPRKK, NCP91L-AHPVKK
View related parts
Toyota Yaris Motor & Link Assembly, F
Part Number: 85010-WB002
Product Specifications
- Other Name: Motor & Link Assy, Front Wiper; Motor Linkage, Wiper Motor
- Replaces: 85010-WB001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2019-2020 Toyota Yaris | Base, Entry, High | P5 | P5; P5; DADW-NAA, DADW-NAB, DADW-NAC, DAEA-NAA, DAEA-NAB, DAEA-NAC, DAEA-NAD, DAEA-NAE, DAEB-NAC, DAEC-NAC, DAEC-NAD, DAEC-NAE, DAEC-NAF, DAED-NAA, DAEE-NAA, DAEE-NAB, DDF4-NAA, DDF4-NAB, DDF4-NAC, DDF4-NAD, DDF5-NAA, DDF5-NAB, DDF5-NAC, DDF5-NAD, DDF5-NAE, DDF5-NAF, DDF5-NAG, DDF8-NAA, DDF9-NAA, DDF9-NAB, DM0S-NAA, DM0S-NAB, DM0S-NAC, DM0T-NAA, DM0T-NAB, DM0T-NAC, DM0T-NAD, DM0T-NAE, DM0V-NAA, DM0W-NAA, DM0W-NAB
View related parts
Toyota Yaris Motor Assembly, Rear WIPER
Part Number: 85130-0D130
Product Specifications
- Other Name: Motor Assy, Rear Wiper; Rear Motor, Wiper Motor
- Manufacturer Note: REAR WINDOW WIPER-WITHOUT
- Position: Rear
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2015-2018 Toyota Yaris | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP131L-CGMRKA, NCP131L-CGMRKK, NCP131L-CGMSKK, NCP131L-CGPRKA, NCP131L-CGPRKK, NCP131L-CGPSKK, NCP131L-CHMRKA, NCP131L-CHMRKK, NCP131L-CHMSKK, NCP131L-CHPRKA, NCP131L-CHPRKK, NCP131L-CHPSKK
View related parts
Toyota Yaris Motor Assembly, Front WIPER
Part Number: 85110-0D191
Product Specifications
- Other Name: Motor Assy, Windshield Wiper; Front Motor, Wiper Motor
- Position: Front
- Replaces: 85110-52620, 85110-0D190
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2012-2018 Toyota Yaris | RS, STD | 4 Cyl 1.5L | 1NZFE; 1NZFE; NCP131L-AGMRKA, 1NZFE; NCP131L-CGMRKA, NCP131L-AGMRKK, NCP131L-AGMVKK, NCP131L-AGPRKA, NCP131L-AGPRKK, NCP131L-AGPVKK, NCP131L-AHMRKA, NCP131L-AHMRKK, NCP131L-AHMVKK, NCP131L-AHPRKA, NCP131L-AHPRKK, NCP131L-AHPVKK, NCP131L-CGMRKK, NCP131L-CGMSKK, NCP131L-CGPRKA, NCP131L-CGPRKK, NCP131L-CGPSKK, NCP131L-CHMRKA, NCP131L-CHMRKK, NCP131L-CHMSKK, NCP131L-CHPRKA, NCP131L-CHPRKK, NCP131L-CHPSKK

Toyota Yaris Wiper Motor

If you are in demand for superior quality and affordable OEM Toyota Yaris Wiper Motor, then shop with us! We own a wide range of the reduced-priced genuine Toyota Yaris Wiper Motor. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Yaris Wiper Motor Parts Questions & Experts Answers

Motor Assy, Rear Wiper
85130-52170
Q: How to remove and refit the wiper motor and linkage on Toyota Yaris?
A: To remove the wiper motor and linkage, start by taking off the wiper arms and peeling off the rubber weatherstrip along the edge of the windscreen lower cover panel. Next, unclip and remove the central section of the cover panel, then unscrew and prise out the various screw and clip fasteners from the remaining cover panels before unclipping and removing them. Disconnect the wiring plug from the wiper motor, then remove the three bolts to lift out the wiper motor and linkage from below the windscreen. If access to another component is needed, no further dismantling is required. To separate the motor and linkage, remove the nut from the motor spindle, ensuring to recover the washer, and mark the motor spindle and mounting frame before removing the three screws to separate the wiper motor from the frame. For refitting, reverse the removal steps while ensuring the motor spindle is in the 'parked' position, aligning the previously made marks, then refit the washer and tighten the nut, secure all fasteners, and finally reattach the wiper arms.
