How do you replace a balljoint on Toyota Matrix?

Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands before removing the wheel. Next, take out the cotter pin from the balljoint stud and loosen the nut without removing it completely. Use a picklefork-type balljoint separator to separate the balljoint from the steering knuckle, then remove the balljoint stud nut, which may require alternating between backing off the nut and pulling down the stud due to tight clearance. After that, remove the bolt and nuts securing the balljoint to the control arm, and use a prybar to separate the balljoint from the control arm. For installation, insert the balljoint stud through the hole in the steering knuckle and install the nut without tightening it yet; thread the nut onto the stud as soon as it protrudes through the hole, then turn the nut to draw the stud up. Attach the balljoint to the control arm, install the bolt and nuts, and tighten them. Finally, tighten the balljoint stud nut and install a new cotter pin, ensuring the cotter pin hole aligns with the slots on the nut by tightening further if necessary. Complete the process by installing the wheel and lug nuts, lowering the vehicle, and tightening the lug nuts.

Genuine Toyota Matrix Ball Joint

Control Arm Joint

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Ball Joints found

View related parts

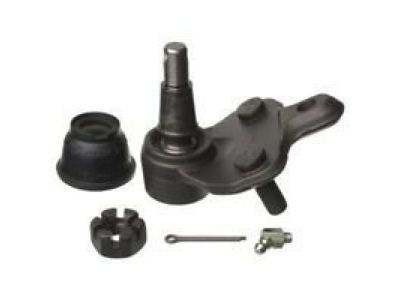

Toyota Matrix Lower Ball Joint Assembly Front Right
Part Number: 43330-09670
$54.13 MSRP: $75.67
You Save: $21.54 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Set, Lower Ball ; Joint Assembly, Lower Ball, Front Rh; Lower Ball Joint
- Position: Front Lower Passenger Side
- Replaces: 43330-09190, 43330-29425
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2014 Toyota Matrix | STD, XR, XRS | 4 Cyl 1.8L | 1ZZFE, 2ZRFE, 2ZZGE; 1ZZFE, 2ZRFE; ZRE142L-DHMDKA, 2ZZGE; ZZE132L-DHMDKA, ZRE142L-DHMDKK, ZRE142L-DHPDKA, ZRE142L-DHPDKK, ZZE132L-DHMDKK, ZZE132L-DHMNKA, ZZE132L-DHMNKK, ZZE132L-DHPDKA, ZZE132L-DHPDKK, ZZE132L-DHPNKA, ZZE132L-DHPNKK, ZZE133L-DHFSFA, ZZE133L-DHFSFK, ZZE133L-DHPSFA, ZZE133L-DHPSFK, ZZE134L-DHPDKA, ZZE134L-DHPDKK, ZZE134L-DHPNKA, ZZE134L-DHPNKK
View related parts
Toyota Matrix Front Right Lower Suspension Ball Joint Assembly
Part Number: 43330-09230
$65.14 MSRP: $91.82
You Save: $26.68 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball, Front Rh; Ball Joint, Lower Ball Joint
- Position: Front Lower Passenger Side
- Replaces: 43330-09070, 43330-49045
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | CE, LE, S | 4 Cyl 1.8L | 1ZZFE, 2ZZGE; 1ZZFE, 2ZZGE; ZZE130L-DEMDKA, ZZE130L-DEMDKK, ZZE130L-DEMNKA, ZZE130L-DEMNKK, ZZE130L-DEMSKA, ZZE130L-DEMSKK, ZZE130L-DEPDKA, ZZE130L-DEPDKK, ZZE130L-DEPNKA, ZZE130L-DEPNKK, ZZE130L-DEPSKA, ZZE130L-DEPSKK, ZZE131L-DEFSFA, ZZE131L-DEFSFK
View related parts
Toyota Matrix Front Left Lower Suspension Ball Joint Assembly
Part Number: 43330-09190
$54.13 MSRP: $75.67
You Save: $21.54 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball, Front Lh
- Position: Front Lower Driver Side
- Replaced by: 43330-09670
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2008 Toyota Matrix | STD, XR, XRS | 4 Cyl 1.8L | 1ZZFE, 2ZZGE; 1ZZFE, 2ZZGE; ZZE132L-DHMDKA, ZZE132L-DHMDKK, ZZE132L-DHMNKA, ZZE132L-DHMNKK, ZZE132L-DHPDKA, ZZE132L-DHPDKK, ZZE132L-DHPNKA, ZZE132L-DHPNKK, ZZE133L-DHFSFA, ZZE133L-DHFSFK, ZZE133L-DHPSFA, ZZE133L-DHPSFK, ZZE134L-DHPDKA, ZZE134L-DHPDKK, ZZE134L-DHPNKA, ZZE134L-DHPNKK
View related parts
Toyota Matrix Lower Ball Joint Assembly Front Left
Part Number: 43330-09660
$59.11 MSRP: $83.30
You Save: $24.19 (30%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Joint Assembly, Lower Ball, Front Lh; Lower Ball Joint
- Position: Front Lower Driver Side
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2014 Toyota Matrix | 4 Cyl 2.4L | 2AZFE; 2AZFE; AZE141L-DHANKA, AZE141L-DHANKK, AZE141L-DHMNKA, AZE141L-DHMNKK, AZE144L-DHPNKA, AZE144L-DHPNKK, AZE146L-DHASKA, AZE146L-DHASKK, AZE146L-DHMSKA, AZE146L-DHMSKK

Toyota Matrix Ball Joint

If you are in demand for superior quality and affordable OEM Toyota Matrix Ball Joint, then shop with us! We own a wide range of the reduced-priced genuine Toyota Matrix Ball Joint. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Matrix Ball Joint Parts Questions & Experts Answers

Front Left Lower Suspension Ball Joint Assembly
43330-09190
Q: How do you replace a balljoint on Toyota Matrix?
A: Loosen the wheel lug nuts, raise the vehicle, and support it securely on jackstands before removing the wheel. Next, take out the cotter pin from the balljoint stud and loosen the nut without removing it completely. Use a picklefork-type balljoint separator to separate the balljoint from the Steering Knuckle, then remove the balljoint stud nut, which may require alternating between backing off the nut and pulling down the stud due to tight clearance. After that, remove the bolt and nuts securing the balljoint to the Control Arm, and use a prybar to separate the balljoint from the control arm. For installation, insert the balljoint stud through the hole in the steering knuckle and install the nut without tightening it yet; thread the nut onto the stud as soon as it protrudes through the hole, then turn the nut to draw the stud up. Attach the balljoint to the control arm, install the bolt and nuts, and tighten them. Finally, tighten the balljoint stud nut and install a new cotter pin, ensuring the cotter pin hole aligns with the slots on the nut by tightening further if necessary. Complete the process by installing the wheel and lug nuts, lowering the vehicle, and tightening the lug nuts.
