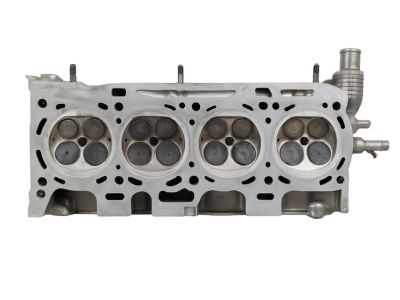

Scion 11101-28012 Head Sub-Assy, Cylinder

2005-2015 Scion 1110128012

Customer Questions & Expert Answers (9)
Toyota 11101-28012 Head Sub-Assy, Cylinder
  • Part Description
    Head Sub-Assy, Cylinder
  • Part Name Code
    11101
  • Replaces
    11101-0H040, 11101-0H011
  • Manufacturer
    Toyota
Make sure this part fits
$639.00 MSRP: $807.34
You Save: $168.34 (21%)
Ships in 1-3 Business Days
1
ADD TO CART
  • Related Parts
  • Product Specifications
  • Vehicle Fitment
  • Customer Questions & Expert Answers
  • Product Specifications

    BrandGenuine Scion
    Part Name Code11101
    Manufacturer Part Number11101-28012
    Part DescriptionHead Sub-Assy, Cylinder
    Other NamesCylinder Head
    Item Dimensions22.1 x 12.6 x 8.3 inches
    Item Weight32.60 Pounds
    ConditionNew
    Fitment TypeDirect Replacement
    Replaces11101-0H040, 11101-0H011
    ManufacturerToyota
    SKU11101-28012
    WarrantyThis genuine Toyota part is guaranteed by Toyota's factory warranty.
