How to replace the rear main seal on V6 engine on Toyota Camry?

First of all, remove the engine/transmission assembly and transaxle. Remove the drive plate. The Crankshaft Seal can be replaced without removing the oil pan or seal retainer. Use a seal-removal tool or a knife to cut the lip off the old Crankshaft Seal, avoiding scratching the crankshaft. Lubricate the new Crankshaft Seal and crankshaft seal journal with grease. Drive the new Crankshaft Seal into the container with a wood block or pipe. Installation is the reverse of removal.

How to replace the front crankshaft seal on Four cylinder engine on Toyota Camry?

Remove the crankshaft pulley. Note how the Crankshaft Seal is installed; the new one must be installed to the same depth and facing the same way. Carefully pry the oil seal out of the cover with a seal puller or a large screwdriver. Be very careful not to distort the cover or scratch the crankshaft! Apply clean engine oil or multi-purpose grease to the outer edge of the new seal, then install it in the cover with the lip (spring side) facing in. Drive the seal into place with a seal driver or a large socket and a hammer. Make sure the seal enters the bore squarely and stops when the front face is at the proper depth. Check the surface on the pulley hub that the seal rides on. if the surface has been grooved from long-time contact with the seal. The pulley should be replaced. Lubricate the pulley hub with clean engine oil and reinstall the crankshaft pulley. Install the crankshaft pulley retaining bolt and tighten it to the torque. The remainder of installation is the reverse of removal.

How to replace the front crankshaft seal on V6 engine on Toyota Camry?

First of all, remove the crankshaft pulley and pry out the seal from the timing chain cover, ensuring not scratch the crankshaft. Clean the bore in the cover and apply oil or grease to the new seal. Use a seal driver or socket to drive the new Crankshaft Seal into place with a hammer. Check the seal's spring hasn't dislodged.

How to replace the rear main oil seal on Four cylinder engine on Toyota Camry?

Remove the engine/transaxle assembly and separate the transaxle from the engine. Remove the flywheel or driveplate and pry the Crankshaft Seal from the engine's rear, noting its depth for new seal installation. Clean the seal bore thoroughly. Lubricate the new seal's outside diameter and install it over the crankshaft end, ensuring the seal lip points towards the engine. Use a seal installation tool to press the new seal into place. If unavailable, use a large socket or blunt tool to drive the seal into the bore. Reinstall the flywheel or driveplate, reattach the transaxle to the engine, and reinstall the assembly.

Genuine Toyota Camry Crankshaft Seal

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

52 Crankshaft Seals found

View related parts

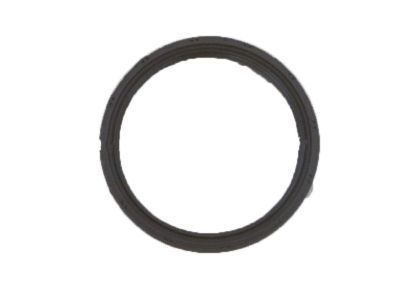

Toyota Camry Seal, Type T Oil
Part Number: 90311-A0027
$43.10 MSRP: $60.25
You Save: $17.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Engine Rear Oil; Rear Main Seal, Rear Seal
- Replaces: 90080-31053, 90311-92010, 90311-92004, 90311-92003, 90311-92006, 90311-92009
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2022 Toyota Camry | CE, LE, SE, XLE, XSE | 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1MZFE, 2GRFE, 2GRFKS, 3MZFE; 1MZFE, 2GRFE, 2GRFE; GSV40L-AETGKA, 2GRFKS; GSV50L-CETGKA, 3MZFE; GSV40L-CETGKA, GSV40L-AETNKA, GSV40L-CETNKA, GSV40L-CETSKA, GSV50L-CETGKA, GSV50L-CETSKA, GSV70L-CEZGBA, GSV70L-CEZPBA, MCV20L-AEPDKK, MCV20L-AEPGKA, MCV20L-AEPGKK, MCV20L-AEPNKA, MCV20L-CEMNKA, MCV20L-CEPDKK, MCV20L-CEPGKA, MCV20L-CEPGKK, MCV20L-CEPNKA, MCV30L-AEAGKA, MCV30L-AEANKA, MCV30L-AEASKA, MCV30L-AEPGKA, MCV30L-AEPNKA, MCV30L-AEPSKA, MCV30L-CEAGKA, MCV30L-CEANKA, MCV30L-CEASKA, MCV30L-CEPGKA, MCV30L-CEPNKA, MCV30L-CEPSKA, MCV31L-AEASKA, MCV31L-CEASKA
View related parts

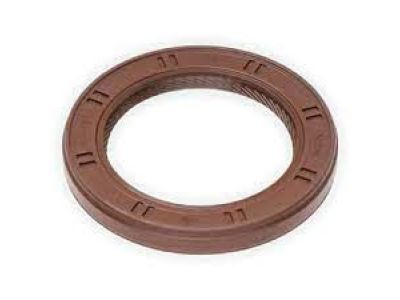

Toyota Camry Seal, Oil
Part Number: 90311-A0005
$18.62 MSRP: $26.03
You Save: $7.41 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaces: 90311-42007, 90311-42037, 90311-42019, 90311-42036
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2017 Toyota Camry | LE, SE, XLE, XSE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSV40L-AETGKA, 2GRFE; GSV40L-CETGKA, GSV40L-AETNKA, GSV40L-CETNKA, GSV40L-CETSKA, GSV50L-CETGKA, GSV50L-CETSKA
View related parts

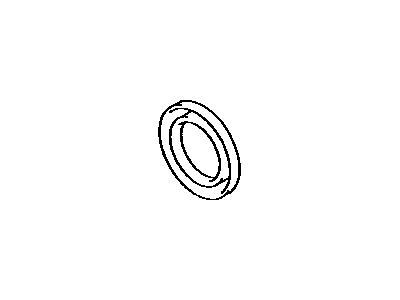

Toyota Camry Seal
Part Number: 90311-42035
$11.27 MSRP: $15.75
You Save: $4.48 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft); Front Crank Seal, Oil Seal
- Comment: (FOR CRANKSHAFT)
- Replaces: 90311-42028, 90311-42034, 90311-42032
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1997-2001 Toyota Camry | CE, LE, XLE | 4 Cyl 2.2L | 5SFE, 5SFNE; 5SFE, 5SFE; SXV20L-AEPGKA, 5SFNE; SXV20L-AEPDKK, SXV20L-AEPGKA, SXV20L-AEPNKA, SXV20L-AEPNKK, SXV20L-CEMDKA, SXV20L-CEMDKK, SXV20L-CEMNKK, SXV20L-CEPDKA, SXV20L-CEPDKK, SXV20L-CEPGKA, SXV20L-CEPNKA, SXV20L-CEPNKK, SXV23L-AEPNCA
View related parts
Toyota Camry Seal, Oil
Part Number: 90311-38089
$11.53 MSRP: $16.12
You Save: $4.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Replaced by: 90311-A0018
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2011 Toyota Camry | LE, SE, XLE | 4 Cyl 2.4L | 2AZFE, 2AZFXE; 2AZFE, 2AZFXE; ACV30L-AEAGKA, ACV30L-AEANKA, ACV30L-AEASKA, ACV30L-AEMNKA, ACV30L-AEMSKA, ACV30L-AEPGKA, ACV30L-AEPNKA, ACV30L-AEPSKA, ACV30L-CEAGKA, ACV30L-CEANKA, ACV30L-CEASKA, ACV30L-CEPGKA, ACV30L-CEPNKA, ACV30L-CEPSKA, ACV40L-AEAGKA, ACV40L-AEANKA, ACV40L-AEMNKA, ACV40L-CEAGKA, ACV40L-CEANKA, ACV40L-CEASKA, ACV40L-CEMNKA, ACV40L-CEMSKA, AHV40L-AEXGBA
View related parts
Toyota Camry Seal, Engine Rear Oil
Part Number: 90311-92006
$43.10 MSRP: $60.25
You Save: $17.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Manufacturer Note: *132
- Position: Rear
- Replaced by: 90311-A0027
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2009 Toyota Camry | LE, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSV40L-AETGKA, GSV40L-AETNKA
View related parts
Toyota Camry Seal
Part Number: 90080-31022
$11.20 MSRP: $15.66
You Save: $4.46 (29%)
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft)
- Manufacturer Note: (L)
- Comment: (FOR CRANKSHAFT)
- Replaces: 90311-42015, 90311-42026, 90311-42003, 90311-42001
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1983-2001 Toyota Camry | CE, DLX, DX, LE, STD, XLE | 4 Cyl 1.8L, 4 Cyl 2.0L, 4 Cyl 2.2L | 1CTLC, 2CTLC, 2SELC, 3SFE, 5SFE; 1CTLC, 2CTLC; CV10L-UEPNXA, 2SELC, 3SFE, 3SFE; CV10L-UEMNXA, 5SFE; SV21L-AEMBKA, 5SFE; SXV10L-CCMDKA, CV10L-UEPNXA, CV11L-UEPNXA, SV11L-UEMEEA, SV11L-UEMEEK, SV11L-UEMNEA, SV11L-UEMNEK, SV11L-UEPEEA, SV11L-UEPEEK, SV11L-UEPNEA, SV11L-UEPNEK, SV11L-UHMEEA, SV11L-UHMEEK, SV11L-UHMNEA, SV11L-UHPEEA, SV11L-UHPEEK, SV11L-UHPNEA, SV21L-AEMBKA, SV21L-AEMDKA, SV21L-AEPBKA, SV21L-AEPDKA, SV21L-AEPNKA, SV21L-UEMBKA, SV21L-UEMBKK, SV21L-UEMDKA, SV21L-UEMDKK, SV21L-UEMNKA, SV21L-UEMNKK, SV21L-UEPBKA, SV21L-UEPBKK, SV21L-UEPDKA, SV21L-UEPDKK, SV21L-UEPNKA, SV21L-UEPNKK, SV21LG-UWMDKA, SV21LG-UWMDKK, SV21LG-UWPDKA, SV21LG-UWPDKK, SV21LG-UWPNKA, SV21LG-UWPNKK, SV25L-UEMDKA, SV25L-UEMDKK, SV25L-UEMNKA, SV25L-UEMNKK, SV25L-UEPDKA, SV25L-UEPDKK, SV25L-UEPNKA, SV25L-UEPNKK, SXV10L-AEMDKA, SXV10L-AEMDKK, SXV10L-AEMNKK, SXV10L-AEPDKA, SXV10L-AEPDKK, SXV10L-AEPGKA, SXV10L-AEPNKA, SXV10L-AEPNKK, SXV10L-CCMDKA, SXV10L-CCMDKK, SXV10L-CCMNKK, SXV10L-CCPDKA, SXV10L-CCPDKK, SXV10L-CCPNKA, SXV10L-CCPNKK, SXV10L-CEMDKA, SXV10L-CEMDKK, SXV10L-CEMNKK, SXV10L-CEPDKA, SXV10L-CEPDKK, SXV10L-CEPGKA, SXV10L-CEPNKA, SXV10L-CEPNKK, SXV10L-CWMDKK, SXV10L-CWPDKA, SXV10L-CWPDKK, SXV10L-CWPNKA, SXV10L-CWPNKK, SXV20L-AEPGKA, SXV20L-AEPNKA, SXV20L-CEMDKA, SXV20L-CEMDKK, SXV20L-CEMNKK, SXV20L-CEPDKA, SXV20L-CEPDKK, SXV20L-CEPGKA, SXV20L-CEPNKA, SXV20L-CEPNKK
View related parts
Toyota Camry Seal, Engine Rear Oil
Part Number: 90080-31053
$43.10 MSRP: $60.25
You Save: $17.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 90311-A0027
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1998-2016 Toyota Camry | CE, LE, SE, XLE, XSE | 6 Cyl 3.0L, 6 Cyl 3.3L, 6 Cyl 3.5L | 1MZFE, 2GRFE, 3MZFE; 1MZFE, 2GRFE, 3MZFE; GSV40L-CETGKA, GSV40L-CETNKA, GSV40L-CETSKA, GSV50L-CETGKA, GSV50L-CETSKA, MCV20L-AEPDKK, MCV20L-AEPGKA, MCV20L-AEPGKK, MCV20L-AEPNKA, MCV20L-CEMNKA, MCV20L-CEPDKK, MCV20L-CEPGKA, MCV20L-CEPGKK, MCV20L-CEPNKA, MCV30L-AEAGKA, MCV30L-AEANKA, MCV30L-AEASKA, MCV30L-AEPGKA, MCV30L-AEPNKA, MCV30L-AEPSKA, MCV30L-CEAGKA, MCV30L-CEANKA, MCV30L-CEASKA, MCV30L-CEPGKA, MCV30L-CEPNKA, MCV30L-CEPSKA, MCV31L-AEASKA, MCV31L-CEASKA
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-A0015
$7.69 MSRP: $10.75
You Save: $3.06 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaces: 90311-A0019, 90311-42043
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2017 Toyota Camry | LE, N, SE, XLE, XSE | 4 Cyl 2.5L | 2ARFE, 2ARFXE; 2ARFE, 2ARFE; ASV50L-CETEKA, 2ARFXE; ASV40L-AETGKA, 2ARFXE; ASV40L-CEFNKA, ASV40L-AETNKA, ASV40L-CEFNKA, ASV40L-CEFSKA, ASV40L-CETGKA, ASV40L-CETNKA, ASV40L-CETSKA, ASV50L-CETEKA, ASV50L-CETGKA, ASV50L-CETNKA, ASV50L-CETPKA, ASV50L-CETSKA, AVV50L-CEXGBA, AVV50L-CEXNBA, AVV50L-CEXSBA
View related parts
Toyota Camry Seal, Engine Rear Oil
Part Number: 90311-89003
$39.28 MSRP: $54.91
You Save: $15.63 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaced by: 90311-89010
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2011 Toyota Camry | LE, SE, XLE | 4 Cyl 2.4L | 2AZFE, 2AZFXE; 2AZFE, 2AZFXE; ACV30L-AEAGKA, ACV30L-AEANKA, ACV30L-AEASKA, ACV30L-AEMNKA, ACV30L-AEMSKA, ACV30L-AEPGKA, ACV30L-AEPNKA, ACV30L-AEPSKA, ACV30L-CEAGKA, ACV30L-CEANKA, ACV30L-CEASKA, ACV30L-CEPGKA, ACV30L-CEPNKA, ACV30L-CEPSKA, ACV40L-AEAGKA, ACV40L-AEANKA, ACV40L-AEMNKA, ACV40L-CEAGKA, ACV40L-CEANKA, ACV40L-CEASKA, ACV40L-CEMNKA, ACV40L-CEMSKA, AHV40L-AEXGBA
View related parts
Toyota Camry Seal, Engine Rear Oil
Part Number: 90311-92008
$47.96 MSRP: $67.03
You Save: $19.07 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaces: 90311-92007, 90080-31033
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2003-2006 Toyota Camry | LE, SE, XLE | 6 Cyl 3.0L, 6 Cyl 3.3L | 1MZFE, 3MZFE; 1MZFE, 3MZFE; MCV30L-AEAGKA, MCV30L-AEANKA, MCV30L-AEASKA, MCV30L-AEPGKA, MCV30L-AEPNKA, MCV30L-AEPSKA, MCV31L-AEASKA
- 1993-2001 Toyota Camry | CE, DX, LE, SE, XLE | 6 Cyl 3.0L | 1MZFE; 1MZFE; MCV10L-AEPDKK, 1MZFE; MCV10L-CCPNKA, 1MZFE; MCV20L-AEPDKK, MCV10L-AEPGKA, MCV10L-AEPNKA, MCV10L-AEPNKK, MCV10L-AEPSKA, MCV10L-CCPNKA, MCV10L-CCPNKK, MCV10L-CCPSKA, MCV10L-CEPDKK, MCV10L-CEPGKA, MCV10L-CEPNKA, MCV10L-CEPNKK, MCV10L-CEPSKA, MCV10L-CWPNKA, MCV10L-CWPNKK, MCV20L-AEPGKA, MCV20L-AEPGKK, MCV20L-AEPNKA, MCV20L-CEMDKA, MCV20L-CEMNKA, MCV20L-CEPDKK, MCV20L-CEPGKA, MCV20L-CEPGKK, MCV20L-CEPNKA, MCV20L-CEPNKK
View related parts
Toyota Camry Seal
Part Number: 90311-42026
$11.20 MSRP: $15.66
You Save: $4.46 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal(For Crankshaft)
- Manufacturer Note: (J)
- Comment: (FOR CRANKSHAFT)
- Replaced by: 90080-31022
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1989-1997 Toyota Camry | CE, DX, LE, STD, XLE | 4 Cyl 2.0L, 4 Cyl 2.2L | 3SFE, 5SFE; 3SFE, 5SFE; SV21L-AEMBKA, SV21L-AEMDKA, SV21L-AEPBKA, SV21L-AEPDKA, SV21L-AEPNKA, SV21LG-UWMDKK, SV21LG-UWPDKA, SV21LG-UWPDKK, SV21LG-UWPNKK, SV21L-UEMBKA, SV21L-UEMDKA, SV21L-UEMDKK, SV21L-UEMNKK, SV21L-UEPBKA, SV21L-UEPDKA, SV21L-UEPDKK, SV21L-UEPNKA, SV21L-UEPNKK, SV25L-UEMDKA, SV25L-UEMDKK, SV25L-UEPDKA, SV25L-UEPDKK, SV25L-UEPNKA, SV25L-UEPNKK, SXV10L-AEMDKA, SXV10L-AEMDKK, SXV10L-AEMNKK, SXV10L-AEPDKA, SXV10L-AEPDKK, SXV10L-AEPGKA, SXV10L-AEPNKA, SXV10L-AEPNKK, SXV10L-CCMDKA, SXV10L-CCMDKK, SXV10L-CCMNKK, SXV10L-CCPDKA, SXV10L-CCPDKK, SXV10L-CCPNKA, SXV10L-CCPNKK, SXV10L-CEMDKA, SXV10L-CEMDKK, SXV10L-CEMNKK, SXV10L-CEPDKA, SXV10L-CEPDKK, SXV10L-CEPGKA, SXV10L-CEPNKA, SXV10L-CEPNKK, SXV10L-CWMDKK, SXV10L-CWPDKA, SXV10L-CWPDKK, SXV10L-CWPNKA, SXV10L-CWPNKK, SXV20L-AEPGKA, SXV20L-AEPNKA, SXV20L-CEMDKA, SXV20L-CEMDKK, SXV20L-CEMNKK, SXV20L-CEPDKA, SXV20L-CEPDKK, SXV20L-CEPGKA, SXV20L-CEPNKA, SXV20L-CEPNKK
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-42045
$14.90 MSRP: $20.83
You Save: $5.93 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2011 Toyota Camry | LE, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSV40L-AETGKA, GSV40L-AETNKA
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-42043
$7.69 MSRP: $10.75
You Save: $3.06 (29%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaced by: 90311-A0015
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2014 Toyota Camry | LE, N, SE, XLE | 4 Cyl 2.5L | 2ARFE, 2ARFXE; 2ARFE, 2ARFXE; ASV40L-AETGKA, ASV40L-AETNKA, ASV40L-CEFNKA, ASV40L-CEFSKA, ASV40L-CETGKA, ASV40L-CETNKA, ASV40L-CETSKA, ASV50L-CETEKA, ASV50L-CETGKA, ASV50L-CETNKA, ASV50L-CETSKA, AVV50L-CEXGBA, AVV50L-CEXNBA
View related parts
Toyota Camry Seal, Oil
Part Number: 90311-42037
$18.62 MSRP: $26.03
You Save: $7.41 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Manufacturer Note: (J)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaced by: 90311-A0005
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2007-2010 Toyota Camry | LE, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSV40L-AETGKA, GSV40L-AETNKA
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-89005
$27.55 MSRP: $38.50
You Save: $10.95 (29%)
ADD TO CART
Product Specifications
- Other Name: Seal, Engine Rear Oil
- Manufacturer Note: *107
- Replaced by: 90311-89015
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2012 Toyota Camry | LE, N, SE, XLE | 4 Cyl 2.5L | 2ARFE, 2ARFXE; 2ARFE, 2ARFXE; ASV40L-AETGKA, ASV40L-AETNKA, ASV40L-CEFNKA, ASV40L-CEFSKA, ASV40L-CETGKA, ASV40L-CETNKA, ASV40L-CETSKA, ASV50L-CETEKA, ASV50L-CETGKA, ASV50L-CETNKA, ASV50L-CETSKA, AVV50L-CEXGBA, AVV50L-CEXNBA
View related parts
Toyota Camry Seal, Engine Rear Oil
Part Number: 90080-31021
$44.90 MSRP: $62.75
You Save: $17.85 (29%)
ADD TO CART
Product Specifications
- Other Name: Crankshaft Pulley Seal, Rear Main Seal
- Manufacturer Note: (L)
- Position: Rear
- Replaces: 90311-85008, 90311-85001, 90311-85006, 90311-85009, 90311-85003
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 1983-2001 Toyota Camry | CE, DLX, DX, LE, STD, XLE | 4 Cyl 2.0L, 4 Cyl 2.2L | 2SELC, 3SFE, 5SFE, 5SFNE; 2SELC, 3SFE, 3SFE; SV11L-UEMEEA, 5SFE, 5SFE; SV21L-AEMBKA, 5SFE; SXV10L-CCMDKA, 5SFE; SXV20L-AEPDKK, 5SFNE; SXV20L-AEPDKK, SV11L-UEMEEK, SV11L-UEMNEA, SV11L-UEMNEK, SV11L-UEPEEA, SV11L-UEPEEK, SV11L-UEPNEA, SV11L-UEPNEK, SV11L-UHMEEA, SV11L-UHMEEK, SV11L-UHMNEA, SV11L-UHPEEA, SV11L-UHPEEK, SV11L-UHPNEA, SV21L-AEMBKA, SV21L-AEMDKA, SV21L-AEPBKA, SV21L-AEPDKA, SV21L-AEPNKA, SV21L-UEMBKA, SV21L-UEMBKK, SV21L-UEMDKA, SV21L-UEMDKK, SV21L-UEMNKA, SV21L-UEMNKK, SV21L-UEPBKA, SV21L-UEPBKK, SV21L-UEPDKA, SV21L-UEPDKK, SV21L-UEPNKA, SV21L-UEPNKK, SV21LG-UWMDKA, SV21LG-UWMDKK, SV21LG-UWPDKA, SV21LG-UWPDKK, SV21LG-UWPNKA, SV21LG-UWPNKK, SV25L-UEMDKA, SV25L-UEMDKK, SV25L-UEMNKA, SV25L-UEMNKK, SV25L-UEPDKA, SV25L-UEPDKK, SV25L-UEPNKA, SV25L-UEPNKK, SXV10L-AEMDKA, SXV10L-AEMDKK, SXV10L-AEMNKK, SXV10L-AEPDKA, SXV10L-AEPDKK, SXV10L-AEPGKA, SXV10L-AEPNKA, SXV10L-AEPNKK, SXV10L-CCMDKA, SXV10L-CCMDKK, SXV10L-CCMNKK, SXV10L-CCPDKA, SXV10L-CCPDKK, SXV10L-CCPNKA, SXV10L-CCPNKK, SXV10L-CEMDKA, SXV10L-CEMDKK, SXV10L-CEMNKK, SXV10L-CEPDKA, SXV10L-CEPDKK, SXV10L-CEPGKA, SXV10L-CEPNKA, SXV10L-CEPNKK, SXV10L-CWMDKK, SXV10L-CWPDKA, SXV10L-CWPDKK, SXV10L-CWPNKA, SXV10L-CWPNKK, SXV20L-AEPGKA, SXV20L-AEPNKA, SXV20L-AEPNKK, SXV20L-CEMDKA, SXV20L-CEMDKK, SXV20L-CEMNKK, SXV20L-CEPDKA, SXV20L-CEPDKK, SXV20L-CEPGKA, SXV20L-CEPNKA, SXV20L-CEPNKK, SXV23L-AEPNCA
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-89015
$27.55 MSRP: $38.50
You Save: $10.95 (29%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Seal, Engine Rear Oil; Rear Main Seal
- Replaces: 90311-89013, 90311-89005, 90311-C0023
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2009-2017 Toyota Camry | LE, N, SE, XLE, XSE | 4 Cyl 2.5L | 2ARFE, 2ARFXE; 2ARFE, 2ARFXE; ASV40L-AETGKA, 2ARFXE; ASV50L-CETEKA, ASV40L-AETNKA, ASV40L-CEFNKA, ASV40L-CEFSKA, ASV40L-CETGKA, ASV40L-CETNKA, ASV40L-CETSKA, ASV50L-CETEKA, ASV50L-CETGKA, ASV50L-CETNKA, ASV50L-CETPKA, ASV50L-CETSKA, AVV50L-CEXGBA, AVV50L-CEXNBA, AVV50L-CEXSBA
View related parts
Toyota Camry Seal, Oil
Part Number: 90311-38078
$11.53 MSRP: $16.12
You Save: $4.59 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Comment: (FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
- Replaced by: 90311-A0018
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2002-2003 Toyota Camry | LE, SE, XLE | 4 Cyl 2.4L | 2AZFE; 2AZFE; ACV30L-AEMNKA, ACV30L-AEMSKA, ACV30L-AEPGKA, ACV30L-AEPNKA, ACV30L-AEPSKA, ACV30L-CEPGKA, ACV30L-CEPNKA, ACV30L-CEPSKA
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-A0028
$8.82 MSRP: $12.33
You Save: $3.51 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Oil(For Timing Gear Case Or Timing Chain Case)
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2018-2022 Toyota Camry | XLE, XSE | 6 Cyl 3.5L | 2GRFKS; 2GRFKS; GSV70L-CEZGBA, GSV70L-CEZPBA
View related parts
Toyota Camry Seal, Type T Oil
Part Number: 90311-92010
$43.10 MSRP: $60.25
You Save: $17.15 (29%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Seal, Engine Rear Oil
- Replaced by: 90311-A0027
- Warranty: This genuine part is guaranteed by Toyota's factory warranty.
Fits the following Vehicles:
- 2010-2011 Toyota Camry | LE, XLE | 6 Cyl 3.5L | 2GRFE; 2GRFE; GSV40L-AETGKA, GSV40L-AETNKA

| Page 1 of 3 |Next >

1-20 of 52 Results

Toyota Camry Crankshaft Seal

The Crankshaft Seal is another major part of the Toyota Camry motor vehicle and is usually sited at the forward part of the motor; and normally fashioned out of metal blended with a little of rubber. Its major role is to protect the engine crankcase from the leakage of oil and facilitate adequate supply of lubricants to the appropriate components with a view of reducing friction and wear. Wear and tear of Crankshaft Seal may, therefore, bring out signals like high mileage or oil leaked that call for replacement. Thus, the integrity of the seal can be preserved, which will thus enhance the life-cycle and performance of the Toyota Camry of the interested owners.

If you are in demand for superior quality and affordable OEM Toyota Camry Crankshaft Seal, then shop with us! We own a wide range of the reduced-priced genuine Toyota Camry Crankshaft Seal. You can purchase in confidence as all parts come with a manufacturer's warranty. Any issues with our products? No need to worry as we have a hassle-free return policy to guide you every step of the way.

Toyota Camry Crankshaft Seal Parts Questions & Experts Answers

Seal, Oil
90311-42037
Q: How to replace the rear main seal on V6 engine on Toyota Camry?
A: First of all, remove the engine/transmission assembly and transaxle. Remove the drive plate. The Crankshaft Seal can be replaced without removing the Oil Pan or seal retainer. Use a seal-removal tool or a knife to cut the lip off the old Crankshaft Seal, avoiding scratching the crankshaft. Lubricate the new Crankshaft Seal and crankshaft seal journal with grease. Drive the new Crankshaft Seal into the container with a wood block or pipe. Installation is the reverse of removal.
Seal, Type T Oil
90311-89006
Q: How to replace the front crankshaft seal on Four cylinder engine on Toyota Camry?
A: Remove the Crankshaft Pulley. Note how the Crankshaft Seal is installed; the new one must be installed to the same depth and facing the same way. Carefully pry the oil seal out of the cover with a seal puller or a large screwdriver. Be very careful not to distort the cover or scratch the crankshaft! Apply clean engine oil or multi-purpose grease to the outer edge of the new seal, then install it in the cover with the lip (spring side) facing in. Drive the seal into place with a seal driver or a large socket and a hammer. Make sure the seal enters the bore squarely and stops when the front face is at the proper depth. Check the surface on the pulley hub that the seal rides on. if the surface has been grooved from long-time contact with the seal. The pulley should be replaced. Lubricate the pulley hub with clean engine oil and reinstall the crankshaft pulley. Install the crankshaft pulley retaining bolt and tighten it to the torque. The remainder of installation is the reverse of removal.
Seal, Oil
90311-38089
Q: How to replace the front crankshaft seal on V6 engine on Toyota Camry?
A: First of all, remove the crankshaft pulley and pry out the seal from the timing chain cover, ensuring not scratch the crankshaft. Clean the bore in the cover and apply oil or grease to the new seal. Use a seal driver or socket to drive the new Crankshaft Seal into place with a hammer. Check the seal's spring hasn't dislodged.
Seal, Engine Rear Oil
90311-89003
Q: How to replace the rear main oil seal on Four cylinder engine on Toyota Camry?
A: Remove the engine/transaxle assembly and separate the transaxle from the engine. Remove the Flywheel or driveplate and pry the Crankshaft Seal from the engine's rear, noting its depth for new seal installation. Clean the seal bore thoroughly. Lubricate the new seal's outside diameter and install it over the crankshaft end, ensuring the seal lip points towards the engine. Use a seal installation tool to press the new seal into place. If unavailable, use a large socket or blunt tool to drive the seal into the bore. Reinstall the flywheel or driveplate, reattach the transaxle to the engine, and reinstall the assembly.

Related Toyota Camry Parts

Browse by Year
